Caterpillar

450F

Backhoe Loader

Max Speed
26.0 mph
Net Power
127.0 hp
All backhoe loaders

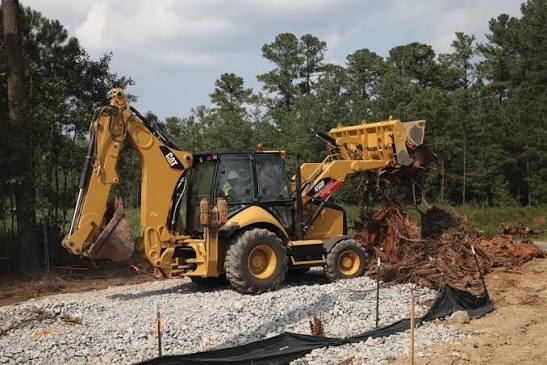

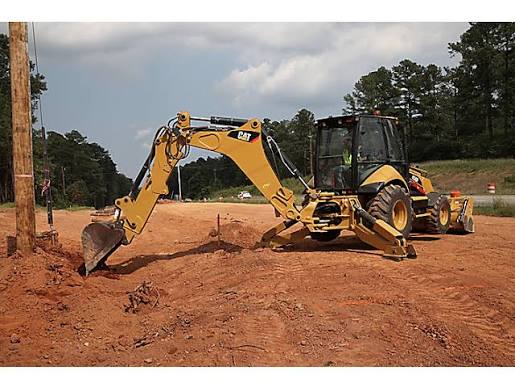

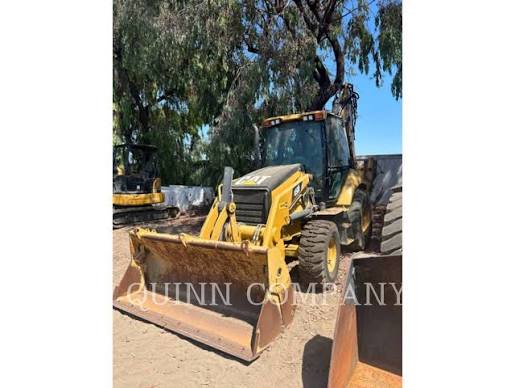

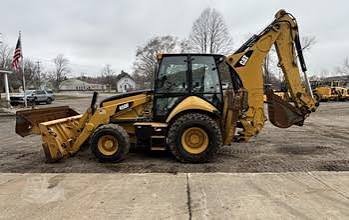

Caterpillar 450F Backhoe Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

13 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,141 lb

Engine

Engine specifications
Net Power127.0 hp

Transmission

Transmission specifications
Max Speed26.0 mph

General Specifications

General Specifications specifications
Operating Weight lbs (kg)24,141 (10,950) — Starting 2016 Model Year
Max Digging Depth ft. (m)17.3 (5.2) — Starting 2016 Model Year
Backhoe Loading Height ft. (m)14.6 (4.5) — Starting 2016 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)25 (40) — Starting 2016 Model Year
Loader SAE HP (kw)127 (95) — Starting 2016 Model Year
Loader Lift Capacity lbs. (kg)3,938 (1,786) — Starting 2016 Model Year
Loader Breakout Force lbs. (kg)11,375 (5,160) — Starting 2016 Model Year

Backhoe

Backhoe specifications
Dig Depth207 in
Load Height175 in

Loader

Loader specifications
Lift Capacity7,871 lb
