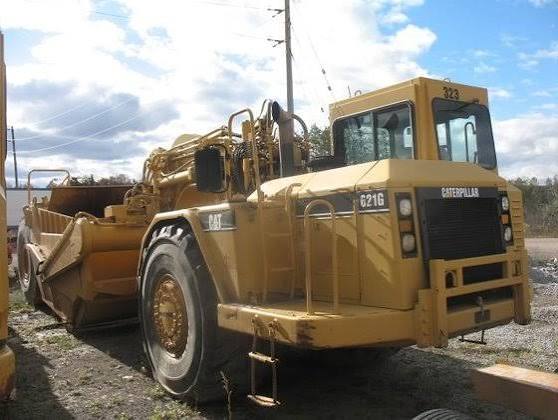

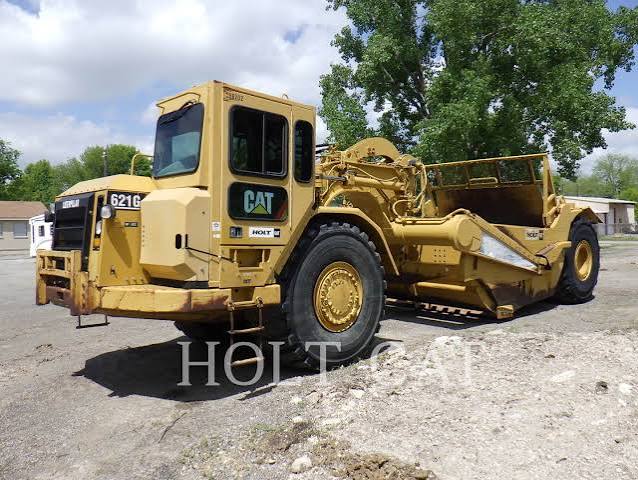

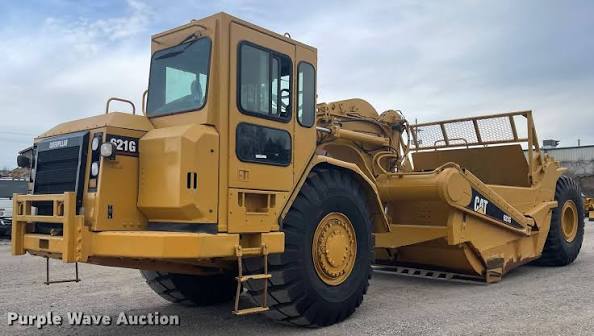

621G

Specifications

116 data points

Operating Specifications specifications
Fuel Capacity	160.0 gal
Tire Size	33.25-R29
Cooling System Fluid Capacity	28.0 gal
Transmission Fluid Capacity	19.0 gal
Engine Oil Fluid Capacity	9.5 gal
Hydraulic System Fluid Capacity	37.0 gal
Operating Voltage	24 V
Differential Fluid Capacity	38.0 gal
Alternator Supplied Amperage	75 A
Wheel Coolant Fluid Capacity - each	12.0 gal

Engine specifications
Tractor Engine	Cat C15 ACERT

Hydraulic System specifications
Bowl Cylinder Bore	6 in
Bowl Cylinder Stroke	32 in
Ejector Cylinder Stroke	61 in
Ejector Cylinder Bore	7 in
Scraper Circuit	72.1 gal/min
Steering Circuit	55.0 gal/min
Relief Valve - Steering Circuit	2,250 psi
Cushion Hitch Circuit	9.8 gal/min
Relief Valve - Implement Circuit	2,175 psi
Apron Cylinder Bore	7 in
Apron Cylinder Stroke	24 in
Compensator Settings - Cushion Hitch Circuit	2,175 psi
Secondary Steering Circuit	52.0 gal/min

Dimensions specifications
Height - Top of Cab	135 in
Wheelbase	306 in
Overall Length	510 in
Overall Width	138 in
Overall Height	146 in
Wheel Base	305 in
Tractor Ground Clearance	23 in
Width - Outside Rear Tires	120 in
Length - Overall Machine	509 in
Height - Overall Shipping	146 in
Height - Scraper Blade Maximum	21 in
Width - Rear Tire Center Lines	87 in
Width - Inside of Bowl	116 in
Rear Axle - Rear of Machine	84 in
Front of Tractor to Front Axle	120 in
Width - Overall Machine	137 in
Width - Tractor	123 in
Ground Clearance - Tractor	22 in
Axle to Vertical Hitch Pin	17 in
Rim Radius	17 in

Transmission specifications
Max Speed - Forward	32.0 mph
Max Speed - Reverse	5.7 mph
Number of Forward Gears	8
Number of Reverse Gears	1
1 Forward	3.2 mph
2 Forward	5.8 mph
3 Forward	7.5 mph
4 Forward	10.1 mph
5 Forward	13.6 mph
6 Forward	18.2 mph
Reverse	5.7 mph
7 Forward	24.2 mph
8 Forward	32.0 mph
Transmission Type	8-speed automatic Powershift with Electronic Control
Travel Speed - Maximum	32.0 mph
