Caterpillar

627F

Scraper

Net Power
327.0 hp
Gross Power
347.0 hp
All scrapers

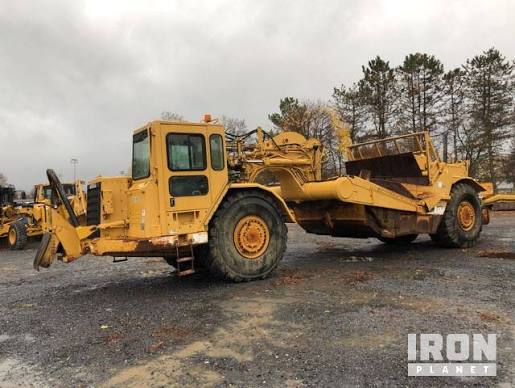

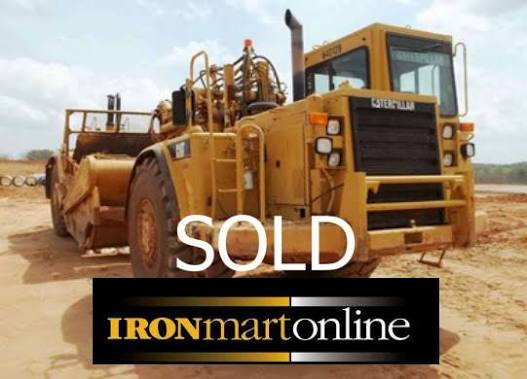

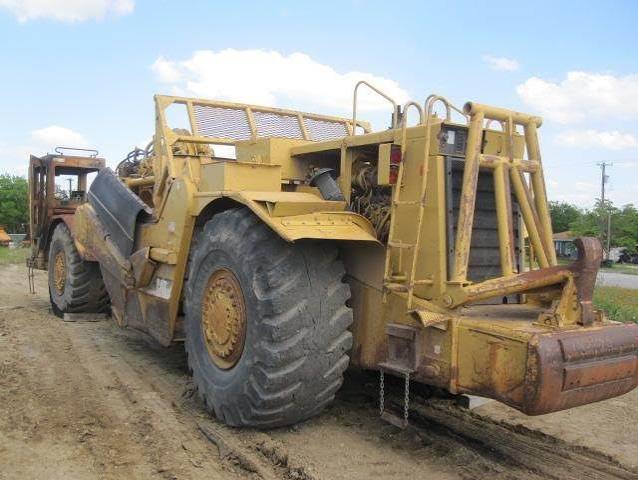

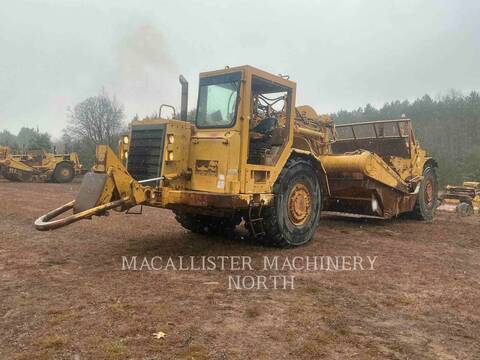

Caterpillar 627F Scraper
1 / 5
Image 1 of 5
Image: surplusrecord.com

Specifications

100 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity262.0 gal
Tire Size33.25-R29 MX XRB 2
Hydraulic System Fluid Capacity37.0 gal

Engine

Engine specifications
Tractor Engine3306 / 3406C
Scraper Engine3306

Weights

Weights specifications
Operating Weight84,050 lb
Total Operating - Loaded80,599 lb

Hydraulic System

Hydraulic System specifications
Bowl Cylinder Bore6 in
Bowl Cylinder Stroke32 in
Ejector Cylinder Stroke61 in
Ejector Cylinder Bore7 in
Scraper Circuit65.5 gal/min
Steering Circuit52.0 gal/min
Relief Valve - Steering Circuit2,250 psi
Cushion Hitch Circuit9.2 gal/min
Relief Valve - Implement Circuit2,150 psi
Apron Cylinder Bore7 in
Apron Cylinder Stroke24 in
Secondary Steering Circuit37.0 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab133 in
Overall Length507 in
Overall Width137 in
Overall Height146 in
Wheel Base305 in
Width - Outside Rear Tires120 in
Height - Overall Shipping146 in
Length - Overall Machine507 in
Height - Scraper Blade Maximum21 in
Width - Overall Machine136 in
Front of Tractor to Front Axle11 in
Width - Inside of Bowl116 in
Width - Rear Tire Center Lines87 in
Rear Axle - Rear of Machine85 in
Width - Tractor117 in
Ground Clearance - Tractor2 in
Axle to Vertical Hitch Pin17 in
Bail Length - Maximum (Push-Pull)60 in
Extended Push Block (Push-Pull)110 in

Transmission

Transmission specifications
Number of Forward Gears8
Number of Reverse Gears1
1 Forward3.1 mph
2 Forward5.6 mph
3 Forward7.1 mph
4 Forward9.6 mph
5 Forward12.9 mph
6 Forward17.5 mph
Reverse5.7 mph
7 Forward23.6 mph
8 Forward31.9 mph

Steering System

Steering System specifications
Steering Angle - Left85 °
Steering Angle - Right90 °
Width - 180 degrees Turn430 in

Bowl

Bowl specifications
Heaped Capacity26.20 yd³
Width of Cut120 in
Struck Capacity18.40 yd³

Scraper Engine

Scraper Engine specifications
Net Power - Gear 1225.0 hp
Gross Power246.0 hp
Gross Power - Gear 1246.0 hp
Displacement638 in³
MakeCaterpillar
Bore5 in
Stroke6 in
Power Measured @2,200 rpm

Tractor Engine

Tractor Engine specifications
Net Power327.0 hp
Net Power - Gears 1-2330.0 hp
Gross Power347.0 hp
Displacement893 in³
Bore5 in
Stroke7 in
Caterpillar Net Power330.0 hp
EEC 80/1269330.0 hp
ISO 9249330.0 hp
SAE J1349327.0 hp

Scraper Bowl

Scraper Bowl specifications
Rated Load48,000 lb
Capacity - Struck14.00 yd³
Depth of Spread - Maximum21 in
Ground Clearance - Maximum21 in
Depth of Cut - Maximum13 in
Scraper Capacity - Heaped20.00 yd³
Width - Cut - To Router Bits119 in
Cutting Edge Thickness1 in
Apron Closure Force24,075 lb
Apron Opening70 in
Hyd. Penetration Force - 621G48,375 lb

Service Refill Capacities - Tractor

Service Refill Capacities - Tractor specifications
Cooling System22.0 gal
Differential43.0 gal
Final Drive - Each5.0 gal
Hydraulic Reservoir37.0 gal
Transmission19.0 gal
Crankcase9.5 gal
Wheel Coolant - Each12.0 gal

Weights - Standard, Tandem

Weights - Standard, Tandem specifications
Front Axle49,590 lb
Front Axle Weight - Loaded64,708 lb
Rear Axle34,460 lb
Rear Axle - Weight - Loaded67,350 lb
Total Operating - Empty84,050 lb
Total Operating - Loaded132,057 lb
Scraper Shipping32,669 lb
Total Shipping83,768 lb
Tractor Shipping51,098 lb
