Caterpillar

627G

Scraper

Net Power
365.0 hp
Gross Power
394.0 hp
Max Speed - Forward
32.0 mph
Max Speed - Reverse
5.7 mph
All scrapers

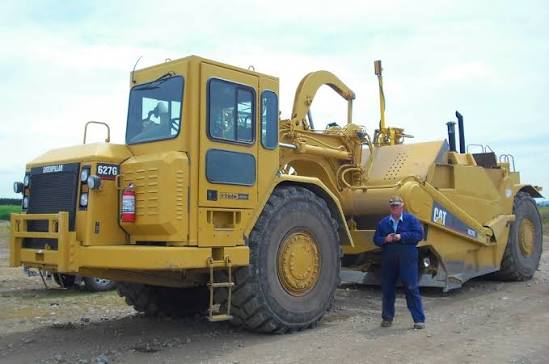

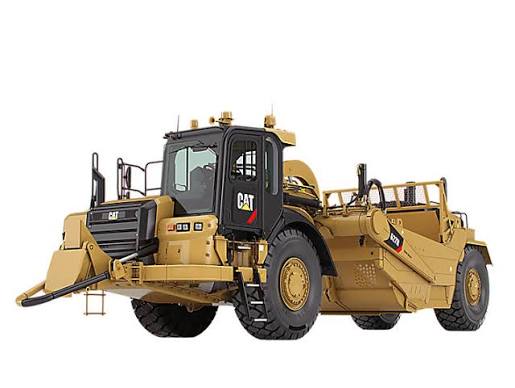

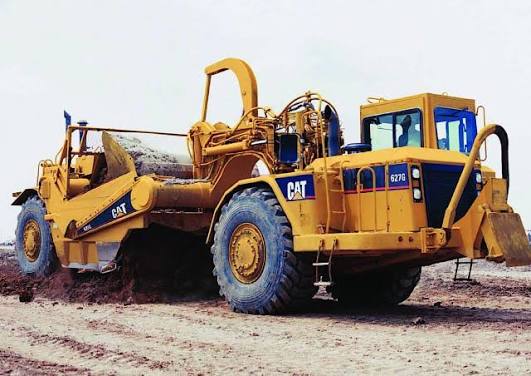

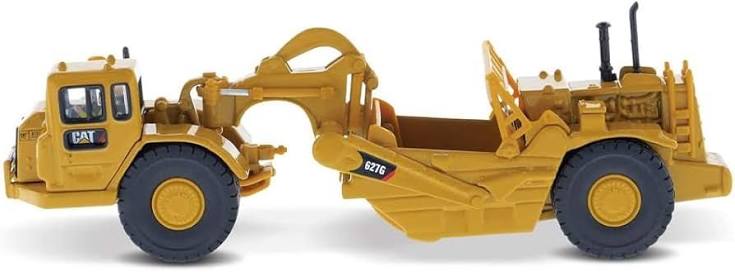

Caterpillar 627G Scraper
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

136 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity292.0 gal
Tire Size33.25-R29
Cooling System Fluid Capacity48.3 gal
Transmission Fluid Capacity34.6 gal
Engine Oil Fluid Capacity16.5 gal
Hydraulic System Fluid Capacity37.0 gal
Operating Voltage24 V
Differential Fluid Capacity42.0 gal
Alternator Supplied Amperage75 A
Wheel Coolant Fluid Capacity - each24.0 gal

Engine

Engine specifications
Tractor EngineCat C15 ACERT
Scraper EngineCat C9 ACERT

Weights

Weights specifications
Operating Weight136,905 lb
Total Operating - empty86,800 lb
Total Operating - Loaded139,601 lb
Front Axle - empty52,080 lb
Rear Axle - empty34,720 lb
Front Axel - loaded68,405 lb
Rear Axle - loaded71,197 lb

Hydraulic System

Hydraulic System specifications
Bowl Cylinder Bore6 in
Bowl Cylinder Stroke32 in
Ejector Cylinder Stroke61 in
Ejector Cylinder Bore7 in
Scraper Circuit65.5 gal/min
Steering Circuit55.0 gal/min
Relief Valve - Steering Circuit2,250 psi
Cushion Hitch Circuit9.8 gal/min
Relief Valve - Implement Circuit2,175 psi
Apron Cylinder Bore7 in
Apron Cylinder Stroke24 in
Secondary Steering Circuit39.9 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab135 in
Wheelbase305 in
Overall Length509 in
Overall Width137 in
Overall Height146 in
Wheel Base305 in
Tractor Ground Clearance23 in
Width - Outside Rear Tires120 in
Height - Overall Shipping146 in
Length - Overall Machine509 in
Height - Scraper Blade Maximum21 in
Width - Overall Machine137 in
Width - Rear Tire Center Lines86 in
Rear Axle - Rear of Machine84 in
Front of Tractor to Front Axle120 in
Width - Inside of Bowl116 in
Width - Tractor123 in
Ground Clearance - Tractor22 in
Axle to Vertical Hitch Pin17 in
Bail Length - Maximum (Push-Pull)64 in
Rim Radius17 in
Extended Push Block (Push-Pull)110 in

Transmission

Transmission specifications
Max Speed - Forward32.0 mph
Max Speed - Reverse5.7 mph
Number of Forward Gears8
Number of Reverse Gears1
1 Forward3.1 mph
2 Forward4.7 mph
3 Forward6.8 mph
4 Forward9.2 mph
5 Forward12.4 mph
6 Forward16.7 mph
Reverse5.7 mph
7 Forward22.6 mph
8 Forward32.0 mph
Transmission Typepowershift
Travel Speed - Maximum32.0 mph

Steering System

Steering System specifications
Steering Angle - Left85 °
Steering Angle - Right90 °
Width - 180 degrees Turn431 in
Hydraulic Output55.0 gal/min

Bowl

Bowl specifications
Heaped Capacity22.00 yd³
Width of Cut120 in
Max Depth of Cut13 in
Rated Payload52,800 lb
Struck Capacity15.70 yd³

Scraper Engine

Scraper Engine specifications
Net Power - Gear 1239.0 hp
Net Power266.0 hp
Gross Power286.0 hp
Gross Power - Gear 1258.0 hp
Displacement538 in³
MakeCaterpillar
Bore5 in
Stroke6 in

Tractor Engine

Tractor Engine specifications
Net Power365.0 hp
Net Power - Gears 1-2330.0 hp
Net Power - Gears 3-8365.0 hp
Net Power - Tractor/Scraper—
Gross Power394.0 hp
Gross Power - Gears 3-8394.0 hp
Displacement928 in³
MakeCaterpillar
Bore6 in
Stroke7 in

Scraper Bowl

Scraper Bowl specifications
Rated Load52,800 lb
Capacity - Struck15.70 yd³
Depth of Spread - Maximum21 in
Ground Clearance - Maximum21 in
Depth of Cut - Maximum13 in
Width - Cut - To Router Bits119 in
Cutting Edge Thickness1 in
Apron Closure Force24,075 lb
Apron Opening70 in
Capacity Heaped22.00 yd³

Service Refill Capacities - Tractor

Service Refill Capacities - Tractor specifications
Cooling System28.0 gal
Differential38.0 gal
Final Drive - Each5.0 gal
Hydraulic Reservoir37.0 gal
Transmission19.0 gal
Crankcase9.5 gal
Wheel Coolant - Each12.0 gal
Windshield Washer1.5 gal

Weights - Standard, Tandem

Weights - Standard, Tandem specifications
Front Axle49,230 lb
Front Axle Weight - Loaded65,396 lb
Rear Axle34,211 lb
Rear Axle - Weight - Loaded70,845 lb
Total Operating - Empty83,441 lb
Total Operating - Loaded136,241 lb
Scraper Shipping33,666 lb
Total Shipping82,113 lb
Tractor Shipping48,447 lb

Service Refill Capacities - Scraper

Service Refill Capacities - Scraper specifications
Cooling System20.3 gal
Differential4.0 gal
Final Drive - Each5.0 gal
Transmission15.6 gal
Wheel Coolant - Each12.0 gal

Weights - Push-Pull

Weights - Push-Pull specifications
Front Axle52,080 lb
Front Axle - Loaded68,405 lb
Rear Axle34,720 lb
Rear Axle - Loaded71,197 lb
Scraper Shipping33,335 lb
Total Operating - Empty86,800 lb
Total Operating - Loaded139,601 lb
Total Shipping85,473 lb
Tractor Shipping52,139 lb
