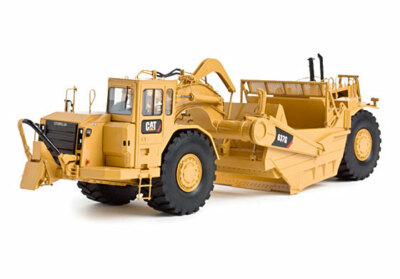

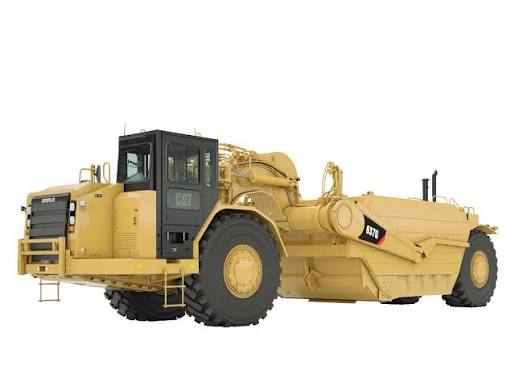

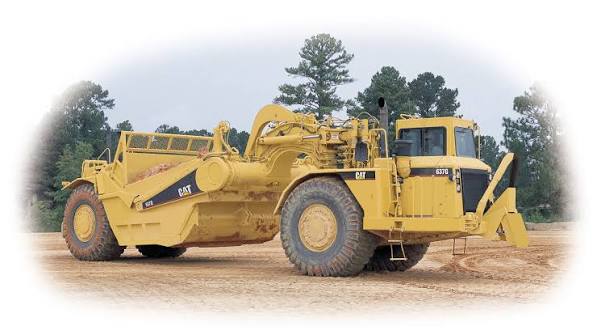

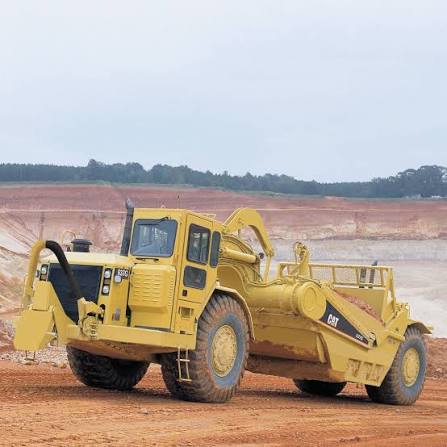

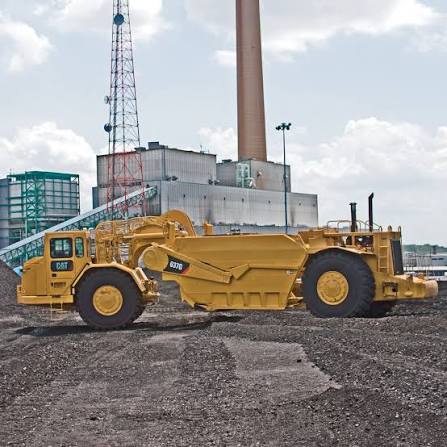

637G

Specifications

141 data points

Operating Specifications specifications
Fuel Capacity	335.0 gal
Tire Size	37.50-R35
Cooling System Fluid Capacity	52.0 gal
Transmission Fluid Capacity	45.7 gal
Engine Oil Fluid Capacity	18.9 gal
Hydraulic System Fluid Capacity	50.0 gal
Operating Voltage	24 V
Differential Fluid Capacity	40.5 gal
Alternator Supplied Amperage	75 A
Wheel Coolant Fluid Capacity - each	39.0 gal
Rated Load	76,000 lb
Scraper Capacity - Heaped	50.00 yd³
Scraper Capacity - Struck	41.00 yd³
Top Speed - Loaded	33.0 mph

Engine specifications
Tractor Engine	Cat C18 with ACERT Technology
Flywheel Power - Tractor/Scraper	373 kw (500) / 211 kW (283)
Scraper Engine	Cat C9 with ACERT Technology

Weights specifications
Operating Weight	114,744 lb
Operating Weight - Loaded - Approximate	194,909 lb
Total Operating - empty	114,745 lb
Total Operating - Loaded	189,745 lb
Front Axle - empty	67,700 lb
Rear Axle - empty	47,045 lb
Front Axel - loaded	92,975 lb
Rear Axle - loaded	96,770 lb

Hydraulic System specifications
Bowl Cylinder Bore	7 in
Bowl Cylinder Stroke	34 in
Ejector Cylinder Stroke	74 in
Ejector Cylinder Bore	8 in
Scraper Circuit	91.0 gal/min
Steering Circuit	100.0 gal/min
Relief Valve - Steering Circuit	1,987 psi
Cushion Hitch Circuit	9.0 gal/min
Relief Valve - Implement Circuit	2,030 psi
Apron Cylinder Bore	8 in
Apron Cylinder Stroke	29 in
Compensator Settings - Cushion Hitch Circuit	2,320 psi
Secondary Steering Circuit	100.0 gal/min

Dimensions specifications
Height - Top of Cab	146 in
Wheelbase	346 in
Overall Length	574 in
Overall Width	156 in
Overall Height	169 in
Wheel Base	346 in
Tractor Ground Clearance	26 in
Width - Outside Rear Tires	143 in
Height - Overall Shipping	169 in
Length - Overall Machine	573 in
Height - Scraper Blade Maximum	22 in
Front of Tractor to Front Axle	135 in
Width - Rear Tire Center Lines	97 in
Width - Overall Machine	155 in
Width - Inside of Bowl	134 in
Rear Axle - Rear of Machine	96 in
Width - Tractor	137 in
Axle to Vertical Hitch Pin	22 in
Ground Clearance - Tractor	26 in
Bail Length - Maximum (Push-Pull)	195 in
Extended Push Block (Push-Pull)	108 in

Standards specifications
Brakes	Meets ISO

Tractor Engine specifications
Net Power - Gears 1-2	450.0 hp
Net Power - Gears 3-8	485.0 hp
Gross Power	515.0 hp
Gross Power - Gears 3-8	519.0 hp
Displacement	1,099 in³
Make	Caterpillar
Bore	5 in
Stroke	6 in
Flywheel Power - Tractor/Scraper	336 kW (450) / 186 kW (249)
