Caterpillar
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

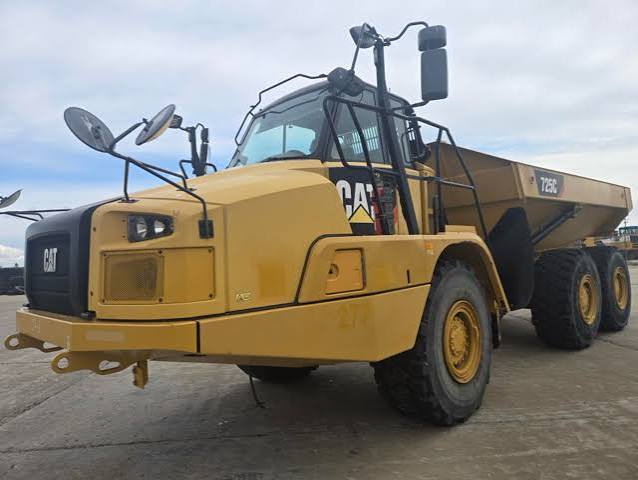

Image 1 of 5
Specifications
80 data points
Operating Specifications
| Fuel Capacity | 28.6 gal |
|---|---|
| Engine Oil Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 5.8 gal |
| Hydraulic System Fluid Capacity | 7.7 gal |
| Transmission Fluid Capacity | 3.3 gal |
Engine
| Displacement | 567 in³ |
|---|---|
| Gross Power | 320.0 hp |
| Net Power | 314.0 hp |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 1,263 lb-ft |
| Stroke | 6 in |
| Bore | 5 in |
| Gross Power - SAE J1995 | 320.0 hp |
| Net Power - SAE J1349 | 314.0 hp |
| Net Power - ISO 14396 | 316.0 hp |
| Peak Engine Torque Gross (SAE J1995) | 1,275 lb-ft |
| Peak Engine Torque Speed | 1,200 rpm |
| No Engine De-rating Required Below | 100,800 in |
| Engine Model - U.S. EPA Tier 4 Final/EU Stage IV | Cat C9.3 ACERT |
| Peak Engine Torque Net (ISO 14396) | 1,263 lb-ft |
Weights
| Total Empty | 51,191 lb |
|---|---|
| Front Axle - empty | 31,813 lb |
| Total Loaded | 103,220 lb |
| Rear Axle - empty | 9,348 lb |
| Front Axle - loaded | 5,423 lb |
| Rear Axle - loaded | 23,303 lb |
| Center Axle - empty | 10,030 lb |
| Center Axle - loaded | 23,303 lb |
Transmission
| Number of Forward Gears | 6 |
|---|---|
| Number of Reverse Gears | 1 |
| Forward - 1 | 5.0 mph |
| Forward - 2 | 9.0 mph |
| Forward - 3 | 14.0 mph |
| Forward - 4 | 21.0 mph |
| Forward - 5 | 30.0 mph |
| Forward - 6 | 35.0 mph |
| Reverse - 1 | 6.0 mph |
Service Refill Capacities
| Cooling System | 21.9 gal |
|---|---|
| Fuel Tank | 108.8 gal |
| Engine Crankcase | 10.0 gal |
| Hydraulic System | 29.1 gal |
| Transmission | 12.4 gal |
| Output Transfer Gear Box | 6.3 gal |
| Final Drives/Differential | 35.7 gal |
| DEF Tank (ISO 2224-1) | 5.3 gal |
Dump
| Dump Angle | 45 ° |
|---|---|
| Raise Time | 10.0 s |
| Lower Time | 8.0 s |
| Capacity - Heaped | 20.40 yd³ |
| Capacity - Struck | 14.40 yd³ |
Standards
| Brakes | ISO 3450 - 2011 |
|---|---|
| Cab - ROPS | ISO 3471 - 2008 |
| Steering | ISO 5010 - 2007 |
| Cab - FOPS | ISO 3449 Level II - 2005 |
Steering System
| Lock to Lock | 4.75 seconds @ 60 rpm |
|---|
Operating Weights
| Total - Empty | 51,191 lb |
|---|---|
| Total - Rated Load | 52,029 lb |
| Center Axle - Empty | 10,030 lb |
| Center Axle - Loaded | 33,333 lb |
| Center Axle - Rated Load | 23,303 lb |
| Front Axle - Empty | 31,813 lb |
| Front Axle - Loaded | 37,236 lb |
| Front Axle - Rated Load | 5,423 lb |
| Rear Axle - Empty | 9,348 lb |
| Rear Axle - Loaded | 32,651 lb |
| Rear Axle - Rated Load | 23,303 lb |
| Total - Loaded | 103,220 lb |
Body Plate
| Body Plate Type | High Strength Brinell HB450 Wear Resistant Steel |
|---|
Turning Circle
| Turning Dimensions - Aisle Width | 210 in |
|---|---|
| Turning Dimensions - Clearance Radius | 318 in |
| Turning Dimensions - Inside Radius | 153 in |
| Turning Dimensions - SAE Turning Radius | 294 in |
| Turning Dimensions - Steer Angle - Left/Right | 45 ° |
Body Capacities
| Heaped (SAE 2:1) | 19.59 yd³ |
|---|---|
| Struck | 14.40 yd³ |
| Tailgate Heaped SAE 2:1 | 20.40 yd³ |
| Tailgate Struck | 14.51 yd³ |
Body Hoist
| Lower Time | 8.0 s |
|---|---|
| Raise Time | 10.0 s |
Sound Levels
| Interior Cab | 76 dB(A) |
|---|
