Caterpillar
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5
Image 1 of 5
Specifications
60 data points
Engine
| Gross Power - SAE J1995 | 320.0 hp |
|---|---|
| Net Power - SAE J1349 | 314.0 hp |
| Net Power - ISO 14396 | 316.0 hp |
| Peak Engine Torque Speed | 1,200 rpm |
| Peak Engine Torque Gross (SAE J1995) | 1,275 lb-ft |
| Peak Engine Torque Net (SAE J1349) | 1,262 lb-ft |
| No Engine De-rating Required Below | 90,000 in |
| Engine Model - U.S. EPA Tier 4 Final/EU Stage IV | Cat C9.3 ACERT |
| Peak Engine Torque Net (ISO 14396) | 1,262 lb-ft |
Transmission
| Forward - 1 | 5.0 mph |
|---|---|
| Forward - 2 | 9.0 mph |
| Forward - 3 | 14.0 mph |
| Forward - 4 | 21.0 mph |
| Forward - 5 | 29.0 mph |
| Forward - 6 | 36.0 mph |
| Reverse - 1 | 6.0 mph |
General Specifications
| Operating Weight lbs (kg) | 50,795 (23,040) — Starting 2019 Model Year |
|---|---|
| Engine type | Cat C9.3 ACERT — Starting 2019 Model Year |
| Articulated/Rigid | A — Starting 2019 Model Year |
| Drive Configuration | 6WD — Starting 2019 Model Year |
| Rated Payload Tons (Metric Tons) | 26.5 (24) — Starting 2019 Model Year |

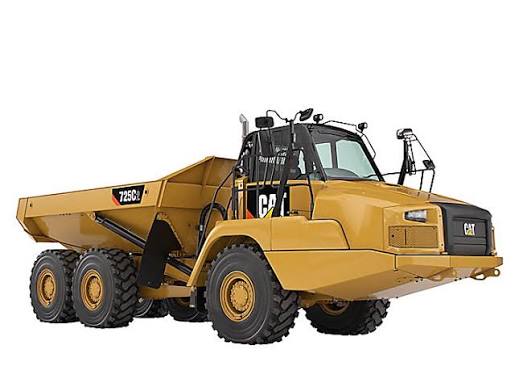

| Mfg. Model | 725C2 — Starting 2019 Model Year |
| Planetary Powershift Transmission | Powershift w/ lockup torque converter — Starting 2019 Model Year |
Service Refill Capacities
| Cooling System | 21.9 gal |
|---|---|
| Fuel Tank | 108.8 gal |
| Engine Crankcase | 10.0 gal |
| Hydraulic System | 29.1 gal |
| Transmission | 12.4 gal |
| Output Transfer Gear Box | 6.3 gal |
| Final Drives/Differential | 33.0 gal |
| DEF Tank | 5.3 gal |
| DEF Tank (ISO 2224-1) | 5.2 gal |
Steering System
| Lock to Lock | 4.75 seconds @ 60 rpm |
|---|
Operating Weights
| Total - Empty | 50,795 lb |
|---|---|
| Total - Rated Load | 52,912 lb |
| Center Axle - Empty | 9,755 lb |
| Center Axle - Loaded | 33,455 lb |
| Center Axle - Rated Load | 23,700 lb |
| Front Axle - Empty | 31,835 lb |
| Front Axle - Loaded | 37,374 lb |
| Front Axle - Rated Load | 5,512 lb |
| Rear Axle - Empty | 9,205 lb |
| Rear Axle - Loaded | 32,905 lb |
| Rear Axle - Rated Load | 23,700 lb |
| Total - Loaded | 103,707 lb |
Body Plate
| Body Plate Type | High strength Brinell HB450 wear resistant steel |
|---|
Turning Circle
| Turning Dimensions - Aisle Width | 210 in |
|---|---|
| Turning Dimensions - Clearance Radius | 318 in |
| Turning Dimensions - Inside Radius | 153 in |
| Turning Dimensions - SAE Turning Radius | 294 in |
| Turning Dimensions - Steer Angle - Left/Right | 45 ° |
Body Capacities
| Heaped (SAE 2:1) | 19.59 yd³ |
|---|---|
| Struck | 14.40 yd³ |
| Tailgate Heaped SAE 2:1 | 20.40 yd³ |
| Tailgate Struck | 14.51 yd³ |
Body Hoist
| Lower Time | 8.0 s |
|---|---|
| Raise Time | 10.0 s |
Sound Levels
| Interior Cab | 76 dB(A) |
|---|
Wheel Base Length
| Long Wheel Base | 215 in |
|---|---|
| Standard Wheel Base | 157 in |
