A35E
Off-Highway Truck
44 specifications
1 / 5

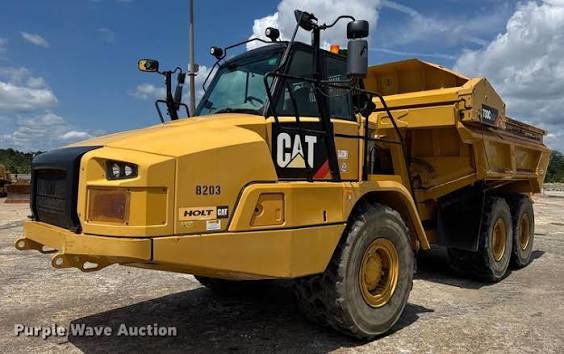

Image 1 of 5
Specifications
52 data points
Engine
| Engine Model | Cat C13 ACERT |
|---|---|
| Displacement | 763 in³ |
| Bore | 5 in |
| Stroke | 6 in |
| Gross Power - SAE J1995 | 375.0 hp |
| Net Power - SAE J1349 | 367.0 hp |
| Net Power - ISO 14396 | 370.0 hp |
| Peak Engine Torque Speed | 1,200 rpm |
| Peak Engine Torque Gross (SAE J1995) | 1,579 lb-ft |
| Peak Engine Torque Net (SAE J1349) | 1,564 lb-ft |
| Engine Model - U.S. EPA Tier 4 Final/EU Stage IV | Cat C13 ACERT |
Transmission
| Forward - 1 | 5.0 mph |
|---|---|
| Forward - 2 | 9.0 mph |
| Forward - 3 | 14.0 mph |
| Forward - 4 | 21.0 mph |
| Forward - 5 | 29.0 mph |
| Forward - 6 | 34.0 mph |
| Reverse - 1 | 6.0 mph |
Service Refill Capacities
| Cooling System | 21.9 gal |
|---|---|
| Fuel Tank | 108.8 gal |
| Engine Crankcase | 10.0 gal |
| Hydraulic System | 29.1 gal |
| Transmission | 12.4 gal |
| Output Transfer Gear Box | 6.3 gal |
| Final Drives/Differential | 33.0 gal |
| DEF Tank | 5.2 gal |
Dump
| Rated Payload | 68,343 lb |
|---|
Standards
| Brakes | ISO 3450 2011 |
|---|---|
| Cab - ROPS | ISO 3471 2008 |
| Steering | ISO 5010 2007 |
| Cab - FOPS | ISO 3449 Level II 2005 |
Steering System
| Lock to Lock | 4.75 seconds @ 60 rpm |
|---|
Operating Weights
| Total - Empty | 58,190 lb |
|---|---|
| Total - Rated Load | 61,729 lb |
| Center Axle - Empty | 12,103 lb |
| Center Axle - Loaded | 42,362 lb |
| Center Axle - Rated Load | 27,249 lb |
| Front Axle - Empty | 34,535 lb |
| Front Axle - Loaded | 36,013 lb |
| Front Axle - Rated Load | 7,231 lb |
| Rear Axle - Empty | 11,552 lb |
| Rear Axle - Loaded | 41,811 lb |
| Rear Axle - Rated Load | 27,249 lb |
| Total - Loaded | 120,186 lb |
Body Plate
| Body Plate Type | High strength Brinell HB450 wear resistant steel |
|---|
Turning Circle
| Turning Dimensions - Aisle Width | 210 in |
|---|---|
| Turning Dimensions - Clearance Radius | 318 in |
| Turning Dimensions - Inside Radius | 153 in |
| Turning Dimensions - SAE Turning Radius | 294 in |
Body Capacities
| Heaped (SAE 2:1) | 22.10 yd³ |
|---|---|
| Struck | 17.70 yd³ |
Sound Levels
| Interior Cab | 76 dB(A) |
|---|
