Caterpillar

735B

Off-Highway Truck

Max Speed
31.8 mph
Gross Power
452.0 hp
Net Power
437.0 hp
All off-highway trucks

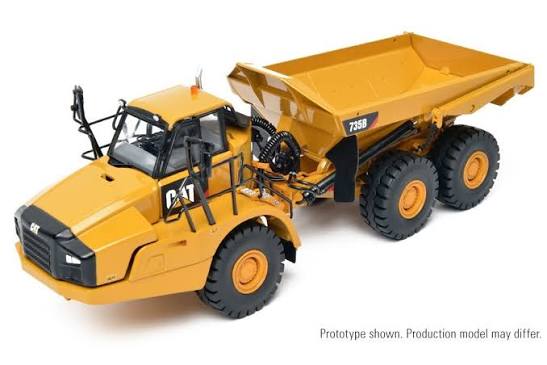

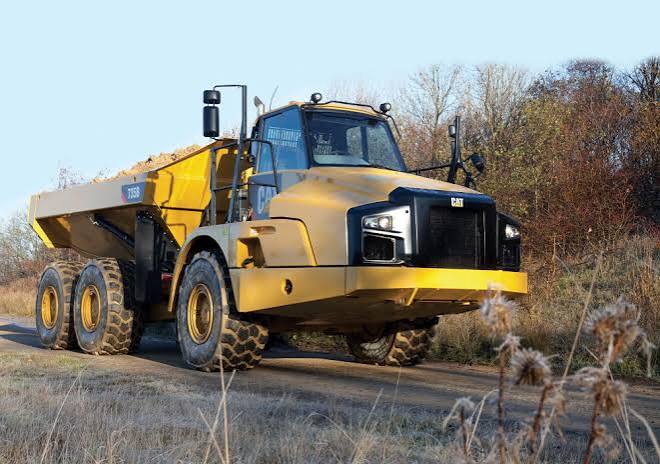

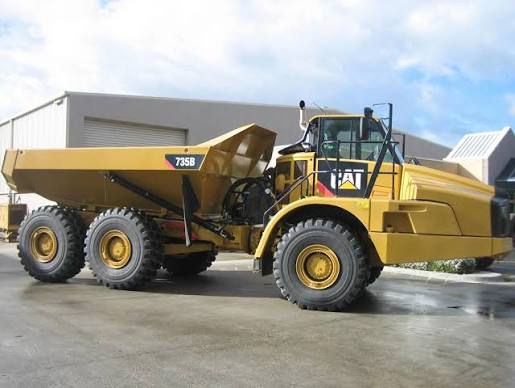

Caterpillar 735B Off-Highway Truck
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

93 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity148.0 gal
Tire Size26.5R25
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity21.2 gal
Hydraulic System Fluid Capacity86.7 gal
Transmission Fluid Capacity19.1 gal

Engine

Engine specifications
Engine ModelCat C15 ACERT
Displacement926 in³
Power Measured @1,700 rpm
Gross Power452.0 hp
Net Power437.0 hp
Torque Measured @1,200 rpm
Max Torque1,238 lb-ft
Stroke7 in
Bore5 in
Gross Power - SAE J1995450.0 hp
Net Power - ISO 9249442.0 hp
Net Power - SAE J1349438.0 hp
Net Power - EEC 80/1269442.0 hp
Net Power - ISO 14396442.0 hp

Weights

Weights specifications
Total Empty71,591 lb
Front Axle - empty44,280 lb
Total Loaded143,682 lb
Rear Axle - empty12,851 lb
Front Axle - loaded51,712 lb
Rear Axle - loaded45,182 lb
Center Axle - empty14,460 lb
Center Axle - loaded46,789 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase206 in
Overall Length433 in
Overall Width146 in
Overall Height158 in
Dump Height269 in
Dump Ground Clearance25 in

Transmission

Transmission specifications
Max Speed31.8 mph
Number of Forward Gears7
Number of Reverse Gears2
Forward - 15.1 mph
Forward - 27.0 mph
Forward - 39.5 mph
Forward - 412.8 mph
Forward - 517.0 mph
Forward - 623.4 mph
Reverse - 15.0 mph
Forward - 731.8 mph
Reverse - 26.7 mph

Service Refill Capacities

Service Refill Capacities specifications
Cooling System21.1 gal
Fuel Tank149.3 gal
Engine Crankcase9.0 gal
Hydraulic System85.0 gal
Transmission19.0 gal
Output Transfer Gear Box4.8 gal
Final Drives/Differential60.8 gal

Dump

Dump specifications
Rated Payload72,091 lb
Dump Angle70 °
Raise Time11.0 s
Lower Time7.0 s
Capacity - Heaped25.79 yd³
Capacity - Struck19.20 yd³

Standards

Standards specifications
BrakesISO 3450 - 1996
Cab - ROPSISO 3471 - 2008
SteeringISO 5010 - 2007
Cab - FOPSISO 3449 Level II - 2005

Steering System

Steering System specifications
Lock to Lock4.6 seconds @ 60 rpm

Operating Weights

Operating Weights specifications
Total - Empty71,317 lb
Total - Rated Load72,091 lb
Center Axle - Empty14,520 lb
Center Axle - Loaded46,850 lb
Center Axle - Rated Load32,329 lb
Front Axle - Empty43,885 lb
Front Axle - Loaded51,317 lb
Front Axle - Rated Load7,432 lb
Rear Axle - Empty12,910 lb
Rear Axle - Loaded45,241 lb
Rear Axle - Rated Load32,329 lb
Total - Loaded143,409 lb

Body

Body specifications
Plate thickness-Front0 in

Body Plate Thickness

Body Plate Thickness specifications
Base1 in
Side1 in
Scow1 in

Turning Circle

Turning Circle specifications
Turning Dimensions - Aisle Width222 in
Turning Dimensions - Clearance Radius338 in
Turning Dimensions - Inside Radius165 in
Turning Dimensions - SAE Turning Radius320 in
Turning Dimensions - Steer Angle - Left/Right45 °

Body Capacities

Body Capacities specifications
Heaped (SAE 2:1)25.79 yd³
Struck19.20 yd³
Tailgate Heaped SAE 2:127.30 yd³
Tailgate Struck19.89 yd³

Body Hoist

Body Hoist specifications
Lower Time7.0 s
Raise Time11.0 s

Sound Levels

Sound Levels specifications
Interior Cab79 dB(A)
