Caterpillar
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

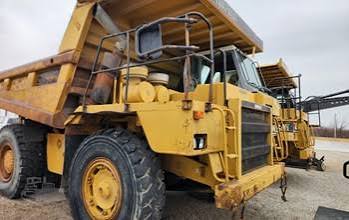

Image 1 of 5
Specifications
92 data points
Operating Specifications
| Fuel Capacity | 140.1 gal |
|---|---|
| Tire Size | 18-R33 |
| Engine Oil Capacity | 11.9 gal |
| Cooling System Fluid Capacity | 30.0 gal |
| Hydraulic System Fluid Capacity | 41.0 gal |
| Steering System Fluid Capacity | 14.8 gal |
| Diff and Final Drive Fluid Capacity | 22.0 gal |
| Brake/Hoist System Fluid Capacity | 73.2 gal |
| Top Speed - Loaded | 47.0 mph |
| Nominal Payload Capacity | 22 lb |
| Body Capacity - SAE 2:1 | 30.70 yd³ |
| Maximum Capacity | 74,800 lb |
| Nominal Payload Class (100%) | 70,820 lb |
| Lower Time | 8.3 s |
| Raise Time | 7.5 s |
| Body Capacity - Struck | 21.20 yd³ |
| Circle Clearance Diameter | 780 in |
Engine
| Engine Model | CAT 3408E TA-HEUI |
|---|---|
| Displacement | 1,099 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 510.0 hp |
| Net Power | 485.0 hp |
| Max Torque | 1,618 lb-ft |
| Make | Cat |
| Torque Rise | — |
| Gross Power - SAE J1995 | 485.0 hp |
| Net Power - ISO 9249 | 47.0 hp |
| Rated Engine Speed | 41 rpm |
| Net Power - SAE J1349 | 37.4 hp |
| Flywheel Power | 485.0 hp |
| Net Power - 80/1269/EEC | 21.2 hp |
| Net Power - Cat | 68,901.0 hp |
Weights
| Operating Weight - Loaded | 150,000.00 lbs (68,038.94 kg) |
|---|---|
| Front Axle - empty | — |
| Rear Axle - empty | — |
| Front Axle - loaded | — |
| Rear Axle - loaded | — |
| Empty Weight | 78,088 lb |
| Loaded Weight | 157,410 lb |
| Weight Distribution Front - loaded | 33.2 % |
| Weight Distribution Rear - loaded | 66.8 % |
| Weight Distribution Front - empty | 49.7 % |
| Weight Distribution Rear - empty | 50.3 % |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Wheelbase | 146 in |
| Overall Length | 317 in |
| Overall Width | 155 in |
| Overall Height | 146 in |
| Dump Height | 306 in |
| Dump Ground Clearance | 19 in |
| Wheel Base | 146 in |
| Operating Width | 200 in |
| Overall Height - Body Raised | 304 in |
| Loading Height - Empty | 125 in |
| Centerline Front Tire Width | 122 in |
| Inside Body Length | 209 in |
| Front Canopy Height | 156 in |
| Overall Canopy Width | 174 in |
Transmission
| Max Speed | 48.3 mph |
|---|---|
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 1 |
| Forward - 1 | 7.9 mph |
| Forward - 2 | 10.7 mph |
| Forward - 3 | 14.5 mph |
| Forward - 4 | 19.6 mph |
| Forward - 5 | 26.5 mph |
| Forward - 6 | 35.6 mph |
| Forward - 7 | 48.3 mph |
| Reverse | 10.3 mph |
Brakes & Steering
| Brake Standards | 12 |
|---|
Tires & Wheels
| Standard Tire | 18.00R33(E-4) |
|---|
Drive System
| Drive Config | 4x2 |
|---|
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 78,991.4 gal |
|---|---|
| Cooling System | 30.2 gal |
| Fuel Tank | 140.0 gal |
| Steering System - Including Tank | 14.8 gal |
| Steering Tank | 9.0 gal |
| Brake Hoist System - Includes Tank | 73.2 gal |
| Torque Converter - Transmission System - Including Sump | 19.1 gal |
| Differential - Final Drives | 22.0 gal |
Articulating/Rigid
| Articulating/Rigid | Rigid |
|---|
Dump
| Dump Angle | 60 ° |
|---|---|
| Raise Time | 7.5 s |
| Lower Time | 8.3 s |
| Load Capacity - heaped | 31.70 yd³ |
| Load Capacity - Struck | 22.30 yd³ |
Body Hoists
| Pump Flow - High Idle | 110.1 gal/min |
|---|---|
| Relief Valve Setting - Raise | 2,498 psi |
| Body Raise Time - High Idle | 7.5 s |
| Body Lower Time - Float | 8.3 s |
| Body Power Down - High Idle | 8.3 s |
Final Drives
| Planetary Ratio | Planetary 4.80:1 reduction |
|---|
