Caterpillar
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

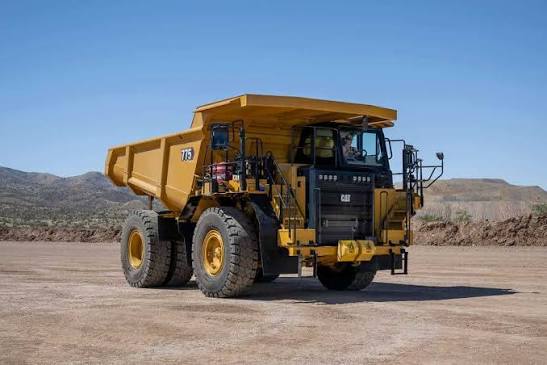

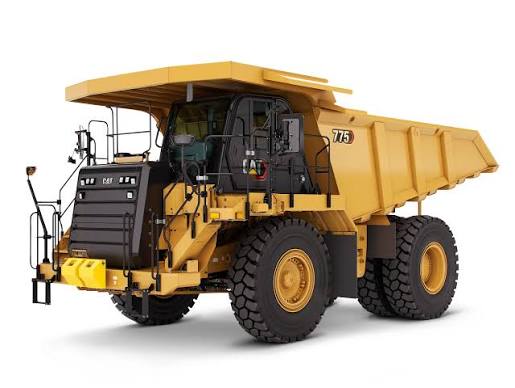

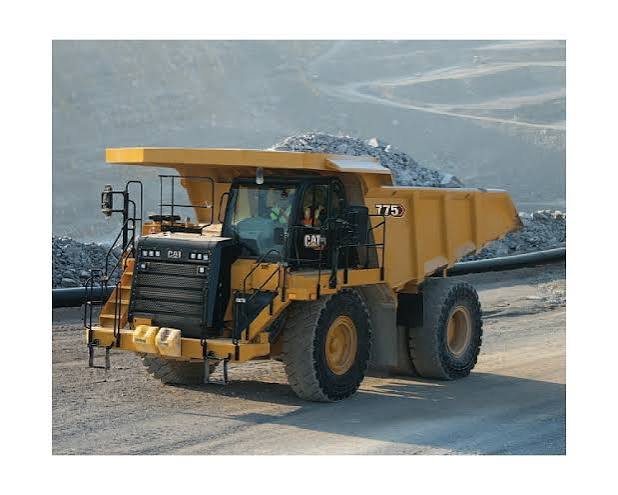

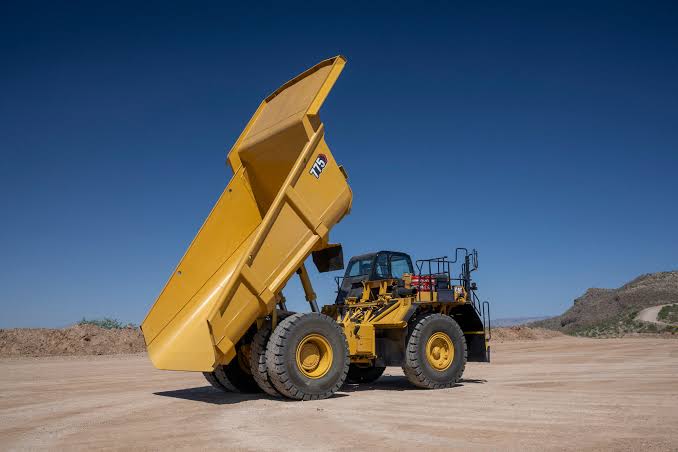

Image 1 of 5
Specifications
92 data points
Operating Specifications
| Fuel Capacity | 185.0 gal |
|---|---|
| Tire Size | 24.00-R35 (E4) |
| Engine Oil Capacity | 18.0 gal |
| Cooling System Fluid Capacity | 40.0 gal |
| Steering System Fluid Capacity | 16.0 gal |
| Diff and Final Drive Fluid Capacity | 41.0 gal |
| Brake/Hoist System Fluid Capacity | 81.0 gal |
| Top Speed - Loaded | 41.1 mph |
| Nominal Payload Capacity | 41 lb |
| Body Capacity - SAE 2:1 | 54.29 yd³ |
| Maximum Capacity | 140,000 lb |
| Nominal Payload Class (100%) | 140,000 lb |
| Body Capacity - Struck | 41.10 yd³ |
| Steer Angle | 31 ° |
Engine
| Engine Model | Cat 3412E |
|---|---|
| Displacement | 1,649 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 760.0 hp |
| Net Power | 730.0 hp |
| Number of Cylinders | 12 |
| Max Torque | 2,542 lb-ft |
| Bore | 5 in |
| Stroke | 6 in |
| Torque Rise | 33.0 % |
| Gross Power - SAE J1995 | 760.0 hp |
| Net Power - ISO 9249 | 730.0 hp |
| Net Power - SAE J1349 | 730.0 hp |
| Flywheel Power | 730.0 hp |
| Net Power - 80/1269/EEC | 730.0 hp |
| Net Power - Cat | 730.0 hp |
Weights
| Operating Weight - Loaded | Meets SAE J1511 FEB94 and ISO 5010:1992 lbs |
|---|---|
| Front Axle - empty | — |
| Rear Axle - empty | — |
| Front Axle - loaded | — |
| Rear Axle - loaded | — |
| Empty Weight | 67,000 lb |
| Loaded Weight | 239,000 lb |
| Weight Distribution Front - loaded | 31.2 % |
| Weight Distribution Rear - loaded | 68.8 % |
| Weight Distribution Front - empty | 44.3 % |
| Weight Distribution Rear - empty | 55.7 % |
Dimensions
| Ground Clearance | 28 in |
|---|---|
| Wheelbase | 166 in |
| Overall Length | 364 in |
| Overall Width | 176 in |
| Overall Height | 174 in |
| Dump Height | 347 in |
| Dump Ground Clearance | 28 in |
| Wheel Base | 166 in |
| Operating Width | 200 in |
| Overall Height - Body Raised | 347 in |
| Loading Height - Empty | 155 in |
| Centerline Front Tire Width | 130 in |
| Inside Body Length | 258 in |
| Front Canopy Height | 174 in |
Transmission
| Max Speed | 40.9 mph |
|---|---|
| Number of Gears - Forward | 7 |
| Number of Gears - Reverse | 1 |
| Forward - 1 | 6.2 mph |
| Forward - 2 | 8.6 mph |
| Forward - 3 | 11.6 mph |
| Forward - 4 | 15.6 mph |
| Forward - 5 | 21.1 mph |
| Forward - 6 | 28.5 mph |
| Forward - 7 | 41.1 mph |
| Reverse | 7.5 mph |
Brakes & Steering
| Standards | 3.64:1 |
|---|---|
| Brake Surface - Rear | 9,496 in³ |
Tires & Wheels
| Standard Tires | 216 |
|---|---|
| Standard Tire | Standard: 24.00-R35 (E4) |
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 136,473.3 gal |
|---|---|
| Cooling System | 40.0 gal |
| Fuel Tank | 185.0 gal |
| Steering System - Including Tank | 16.0 gal |
| Steering Tank | 9.0 gal |
| Brake Hoist System - Includes Tank | 81.0 gal |
| Torque Converter - Transmission System - Including Sump | 19.0 gal |
| Differential - Final Drives | 41.0 gal |
| Torque Converter - Brake - Hoist Hydraulic Tank | 35.0 gal |
Dump
| Load Capacity - heaped | 54.29 yd³ |
|---|---|
| Load Capacity - Struck | 41.10 yd³ |
Steering System
| Steering Standards | Meets SAE J1511 FEB94 and ISO 5010:1992 |
|---|
Sound
| Sound Standards | Meets SAE J88 APR95 |
|---|
Approximate Weights - Flat Floor
| Body | 28,814 lb |
|---|
Body Hoists
| Pump Flow - High Idle | 148.0 gal/min |
|---|---|
| Relief Valve Setting - Raise | 2,750 psi |
| Body Raise Time - High Idle | 9.5 s |
| Body Lower Time - Float | 12.5 s |
| Body Power Down - High Idle | — |
Final Drives
| Planetary Ratio | 4.80:1 |
|---|---|
| Total Reduction Ratio | 17.48:1 |
ROPS
| ROPS Standards | Meets SAE J88 APR95 |
|---|
