CaterpillarEuclid
R85B
Off-Highway Truck
39 specifications
1 / 5

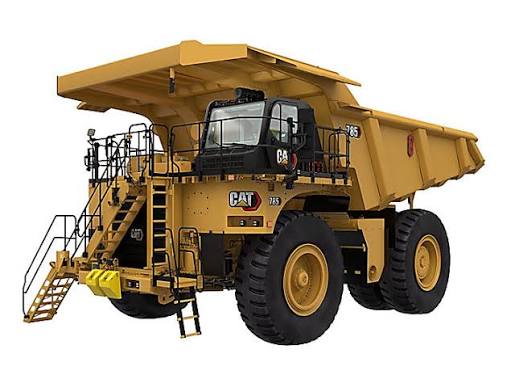

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Fuel Capacity | 500.0 gal |
|---|---|
| Tire Size | 33.00-51 50PR (E-4) |
Engine
| Engine Model | 3512 |
|---|---|
| Displacement | 3,161 in³ |
| Gross Power | 1,380.0 hp |
| Net Power | 1,290.1 hp |
Weights
| Empty Weight | 212,422 lb |
|---|---|
| Loaded Weight | 549,906 lb |
| Weight Distribution Front - loaded | 33.0 % |
| Weight Distribution Rear - loaded | 67.0 % |
| Weight Distribution Front - empty | 47.0 % |
| Weight Distribution Rear - empty | 53.0 % |
Dimensions
| Wheelbase | 204 in |
|---|---|
| Overall Length | 434 in |
| Overall Width | 261 in |
| Overall Height | 228 in |
| Dump Height | 442 in |
Transmission
| Max Speed | 34.8 mph |
|---|---|
| Number of Gears - Forward | 6 |
General Specifications
| Operating Weight lbs (kg) | 550,000 (249,476) Starting 2024 Model Year |
|---|---|
| Engine type | Cat 3512E Starting 2024 Model Year |
| Articulated/Rigid | Rigid Starting 2024 Model Year |
| Drive Configuration | 2WD Starting 2024 Model Year |
| Rated Payload Tons (Metric Tons) | 153 (139) Starting 2024 Model Year |
| Mfg. Model | 785 Starting 2024 Model Year |
| Planetary Powershift Transmission | Auto Starting 2024 Model Year |
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 299,967.3 gal |
|---|
Dump
| Rated Payload | 300,000 lb |
|---|---|
| Load Capacity - heaped | 102.10 yd³ |
| Load Capacity - Struck | 74.59 yd³ |
