Caterpillar

816K

Landfill Compactor

Gross Power
284.0 hp
Net Power
248.0 hp
All landfill compactors

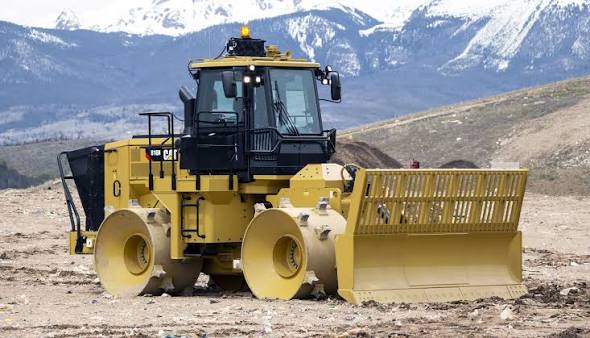

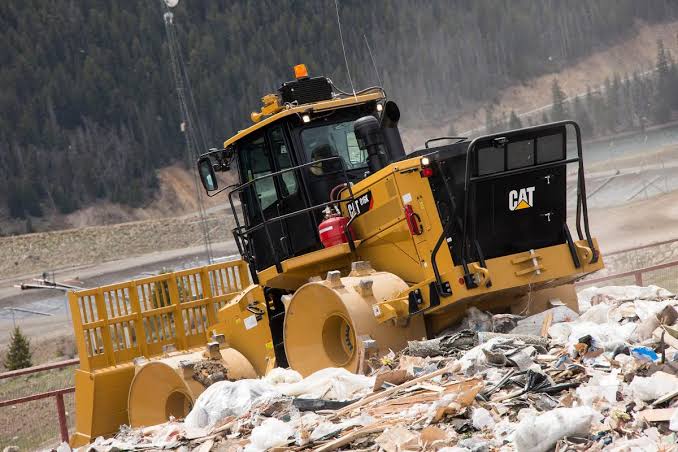

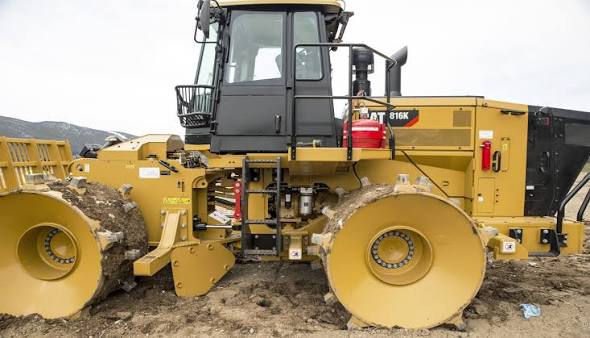

Caterpillar 816K Landfill Compactor
1 / 5
Image 1 of 5
Image: cat.com

Specifications

48 data points

Engine

Engine specifications
Engine ModelCat C7.1 ACERT: configured for two emissions options
Displacement428 in³
Gross Power284.0 hp
Net Power248.0 hp
Bore4 in
Stroke5 in
Torque Rise52.0 %
EmissionsMeets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards
Low Idle Speed800 rpm
High Idle Speed2,270 rpm
Maximum Altitude - Without Derating118,111 in

Hydraulic System

Hydraulic System specifications
Main Relief Pressure3,190 psi
Maximum Supply Pressure2,930 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheel Base132 in
Width Over Wheels1,577 in
Height - Top of Hood107 in
Ground Clearance - Bumper32 in
Height - Top of Exhaust Pipe138 in
Hitch to Centerline of Front Axle66 in
Height - Top of Beacon172 in

Transmission

Transmission specifications
Transmission TypePlanetary Powershift ECPC
Travel Speeds - Forward - First3.8 mph
Travel Speeds - Forward - Second6.8 mph
Travel Speeds - Reverse - First4.3 mph
Travel Speeds - Reverse - Second7.8 mph

Brakes & Steering

Brakes & Steering specifications
Parking brakeDrum and Shoe Spring Applied Hydraulic Released

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank132.1 gal
Differential - Final Drives - Front11.4 gal
Differential - Final Drives - Rear11.4 gal
Transmission14.8 gal
Engine Crankcase5.3 gal
Hydraulic Tank Only19.8 gal

Blades

Blades specifications
Maximum Lift Above Ground44 in
Maximum Depth of Cut15 in
Width - Over End Bits144 in

Axles

Axles specifications
FrontPlanetary Fixed
RearPlanetary Oscillating
Oscillation Angle6 °

Hydraulic System - Steering

Hydraulic System - Steering specifications
Steering System - CircuitClosed Center Load Sensing
Steering System - PumpPiston Variable Displacement
Steering Pressure Limited4,003 psi
Bore4 in
Maximum System Flow147 L/min @ 2111 rpm (38.8 gal/min @ 2111 rpm)
Stroke24 in
Vehicle Articulation Angle84 °

Cab - Standard

Cab - Standard specifications
Operator Sound Level - ISO 639671 dB(A)

Cab - Suppression

Cab - Suppression specifications
Operator Sound Level - ISO 639670 dB(A)
