Caterpillar

826C

Landfill Compactor

Operating Weight
69,732 lb
Max Speed
20.2 mph
Gross Power
341.0 hp
Net Power
315.0 hp
All landfill compactors

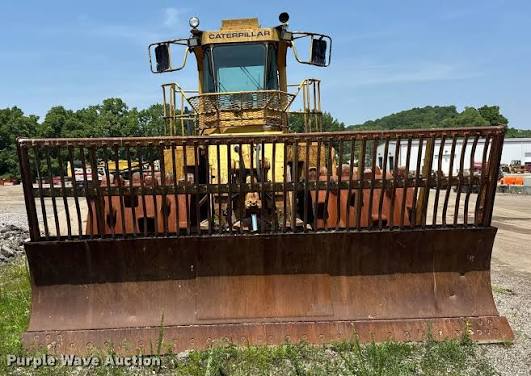

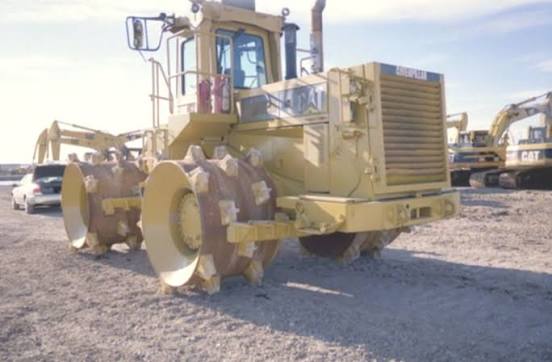

Caterpillar 826C Landfill Compactor
1 / 5
Image 1 of 5
Image: minimovers.nl

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight69,732 lb
Fuel Capacity158.6 gal
Hydraulic System Fluid Capacity30.4 gal
Engine Oil Capacity7.4 gal
Operating Voltage24 V
Cooling System Fluid Capacity22.5 gal
Transmission Fluid Capacity16.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine Model3406
Displacement891 in³
Power Measured @2,100 rpm
Gross Power341.0 hp
Net Power315.0 hp
Number of Cylinders6
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab157 in
Wheelbase139 in
Width Over Wheels150 in

Transmission

Transmission specifications
Max Speed20.2 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypeCat. Planetary powershift

Blades

Blades specifications
Blade Width176 in
Blade Height76 in

Wheels

Wheels specifications
Front Wheels Drum Diameter60 in
Front Wheels Drum Width47 in
Rear Wheels Drum Diameter60 in
Rear Wheels Drum Width47 in
