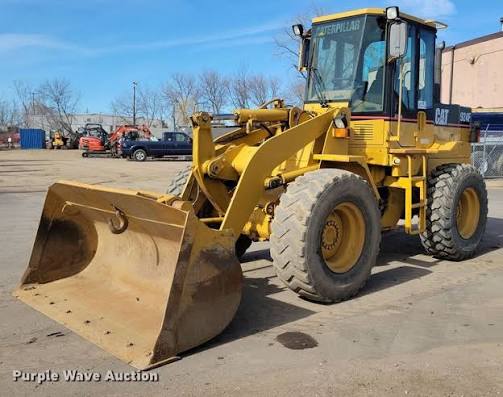

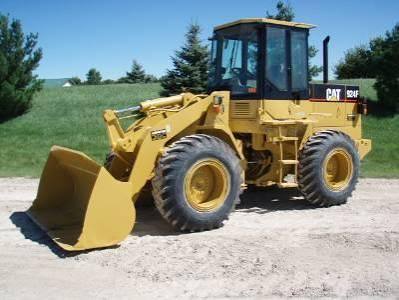

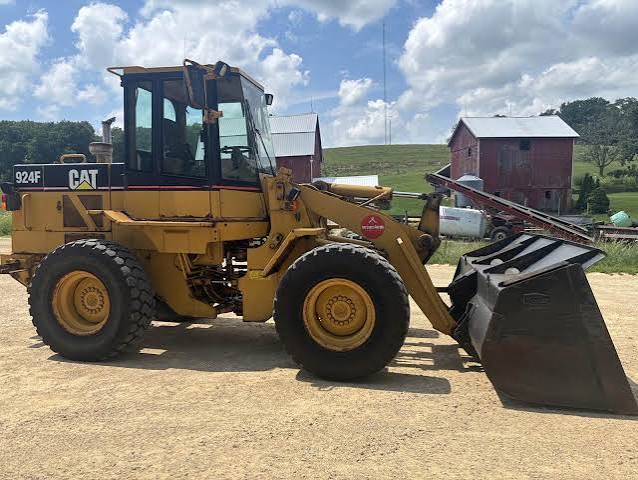

Caterpillar
924F
- Operating Weight
- 19,897 lb
- Bucket Capacity - heaped
- 2.30 yd³
- Gross Power
- 111.0 hp
- Net Power
- 105.0 hp
1 / 5
Image 1 of 5
Specifications
71 data points
Operating Specifications
| Operating Weight | 19,897 lb |
|---|---|
| Fuel Capacity | 41.5 gal |
| Tire Size | 17.5-25 |
| Hydraulic System Fluid Capacity | 20.4 gal |
| Static Tipping Weight | 15,880 lb |
| Engine Oil Fluid Capacity | 2.7 gal |
| Rear Axle Oscillation | 24 ° |
| Front Axle/Diff Fluid Capacity | 5.6 gal |
| Rear Axle/Diff Fluid Capacity | 5.6 gal |
| Cooling System Fluid Capacity | 9.3 gal |
| Transmission Fluid Capacity | 6.1 gal |
| Breakout Force | 21,067 lb |
| Articulation Angle | 40 ° |
| Static Tipping Load - Full Turn | 13,885 lb |
| Reach - Full Lift and 45 degrees Dump | 33 in |
| Dump Clearance at Full Lift and 45 degrees Dump Angle | 106 in |
Engine
| Engine Model | 3114 |
|---|---|
| Displacement | 268 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 111.0 hp |
| Net Power | 105.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Rated Net Power | 105.0 hp |
Weights
| Operating Weight | 20,081 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 34.9 gal/min |
|---|---|
| Raise Time | 4.3 s |
| Lower Time | 2.7 s |
| Dump Time | 1.3 s |
| Relief Valve Setting | 3,600 psi |
Dimensions
| Height - Top of Cab | 124 in |
|---|---|
| Wheelbase | 107 in |
| Width Over Tires | 93 in |
| Reach at Max Lift and Dump | 35 in |
| Length with Bucket on Ground | 258 in |
| Hinge Pin - Max Height | 142 in |
| Overall Height | 124 in |
| Height - Top of ROPS/FOPS | 124 in |
| Wheel Base | 106 in |
| Bucket Pin Height - Maximum Lift | 142 in |
| Rack Back Angle - Carry | 45 ° |
Transmission
| Max Speed - Forward | 23.9 mph |
|---|---|
| Max Speed - Reverse | 14.8 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Forward - 1 | 4.5 mph |
| Reverse - 1 | 4.5 mph |
| 2 Forward | 8.2 mph |
| 3 Forward | 14.7 mph |
| 4 Forward | 23.8 mph |
Tires & Wheels
| Size | 17.5-25 |
|---|---|
| Tread Width | 73 in |
Bucket
| Bucket Capacity - heaped | 2.30 yd³ |
|---|---|
| Bucket Capacity - struck | 1.90 yd³ |
| Dump Clearance at Max Raise | 107 in |
Service Refill Capacities
| Cooling System | 9.3 gal |
|---|---|
| Transmission | 6.1 gal |
| Crankcase | 2.7 gal |
| Fuel Tank | 41.5 gal |
| Hydraulic Tank | 14.0 gal |
| Front | 5.6 gal |
| Rear | 5.6 gal |
Steering System
| Steering Articulation | 40 ° |
|---|---|
| Minimum Turning Radius - Over Tires | 201 in |
Axles
| Axle Oscillation | 12 ° |
|---|
Loader Hydraulic System
| Dump | 1.3 s |
|---|---|
| Lower, Empty, Float Down | 2.7 s |
| Raise | 4.3 s |
| Total | 8.3 s |
| Pump Flow - Implement Pump | 35.0 gal/min |
