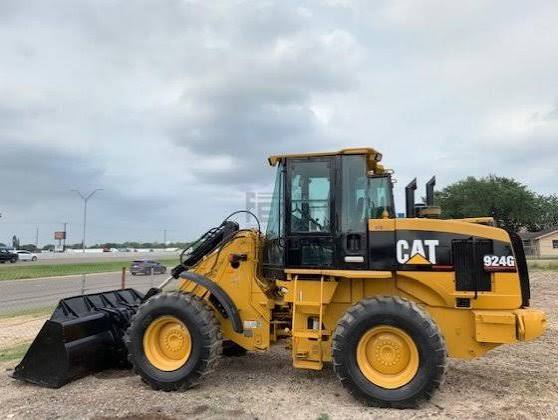

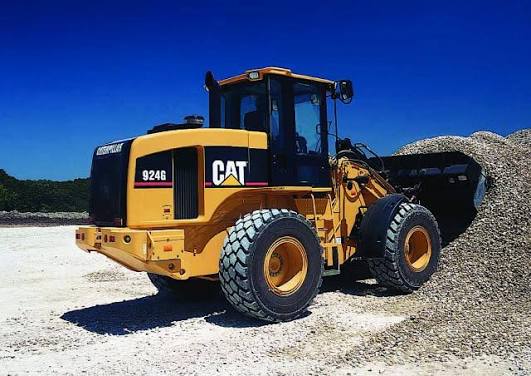

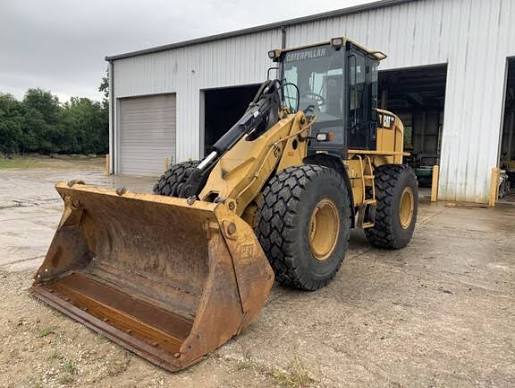

924G

Specifications

81 data points

Operating Specifications specifications
Static Tipping Weight	17,359 lb
Operating Voltage	24 V
Turning Radius	200 in
Engine Oil Fluid Capacity	5.3 gal
Rear Axle Oscillation	12 °
Alternator Supplied Amperage	80 A
Front Axle/Diff Fluid Capacity	5.6 gal
Rear Axle/Diff Fluid Capacity	5.6 gal
Cooling System Fluid Capacity	10.6 gal
Transmission Fluid Capacity	6.1 gal
Engine Oil Capacity	5.3 gal
Front Diff Fluid Capacity	5.6 gal
Rear Diff Fluid Capacity	5.6 gal
Breakout Force	21,727 lb
Articulation Angle	40 °
Static Tipping Load - Full Turn	15,163 lb
Reach - Full Lift and 45 degrees Dump	25 in
Dump Clearance at Full Lift and 45 degrees Dump Angle	109 in

Weights specifications
Operating Weight	23,920 lb

Hydraulic System specifications
Relief Valve Setting	3,757 psi

Dimensions specifications
Wheelbase	110 in
Overall Length	277 in
Width Over Tires	95 in
Length with Bucket on Ground	277 in
Hinge Pin - Max Height	149 in
Overall Height	189 in
Height - Top of ROPS/FOPS	126 in
Digging Depth	4 in
Wheel Base	110 in
Length w/ Bucket on Ground	283 in
Fork Tine Length	48 in
Bucket Pin Height - Maximum Lift	145 in
Length with out Forks on Ground	300 in
Height - Top of Hood	85 in
Wheel Base Length	110 in
Centerline of Front Axle to Hitch	56 in
Rack Back Angle - Carry	48 °
Dump Angle at Maximum Lift	45 °
Rack Back Angle - Maximum Lift	58 °
Dump Clearance at Maximum Lift - 45 degrees	109 in
Reach at Maximum Lift and 45 degrees Dump	25 in
Height - Center of Axle	25 in
Overall Height - Bucket Raised	189 in
Carry Height	15 in
Length - Rear Axle to Bumper	77 in

Cab & Operator specifications
FOPS	SAE J231 JAN81 ISO 3449-1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471-1994

Tires & Wheels specifications
Size	17.5-25PR (L-2)
Tread Width	74 in

Steering System specifications
Steering Angle - Each Direction	40 °
Maximum Working Pressure	3,000 psi
Steering Cylinder, Two, Bore	3 in
Minimum Turning Radius - Over Tires	200 in

Axles specifications
Axle Oscillation	12 °
