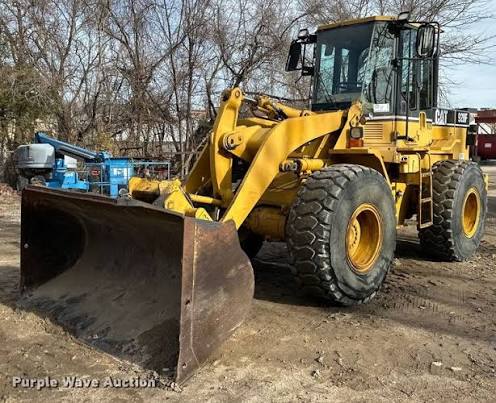

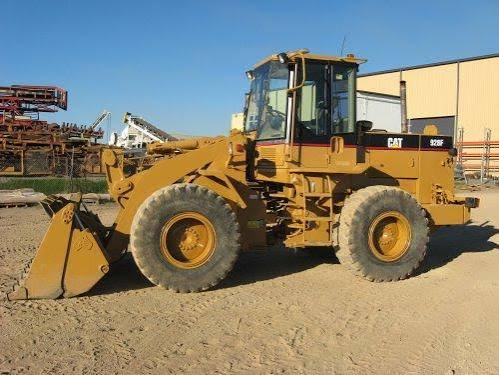

Caterpillar
928F
- Operating Weight
- 24,626 lb
- Bucket Capacity - heaped
- 2.69 yd³
- Gross Power
- 128.1 hp
- Net Power
- 120.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 24,626 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Tire Size | 15.5 and 20.5X25 |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 6.9 gal |
| Rear Axle/Diff Fluid Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 12.7 gal |
| Transmission Fluid Capacity | 8.0 gal |
Engine
| Engine Model | 3116 T |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 128.1 hp |
| Net Power | 120.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbo Charged |
| Stroke | 5 in |
| Bore | 4 in |
Hydraulic System
| Pump Flow Capacity | 36.8 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 2.3 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 3,596 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 114 in |
| Width Over Tires | 94 in |
| Reach at Max Lift and Dump | 39 in |
| Length with Bucket on Ground | 274 in |
| Hinge Pin - Max Height | 146 in |
Transmission
| Max Speed - Forward | 24.5 mph |
|---|---|
| Max Speed - Reverse | 13.1 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.69 yd³ |
|---|---|
| Bucket Capacity - struck | 2.30 yd³ |
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 22,233 lb |
| Bucket Width | 101 in |
