Caterpillar

930H

Wheel Loader

Operating Weight
28,725 lb
All wheel loaders

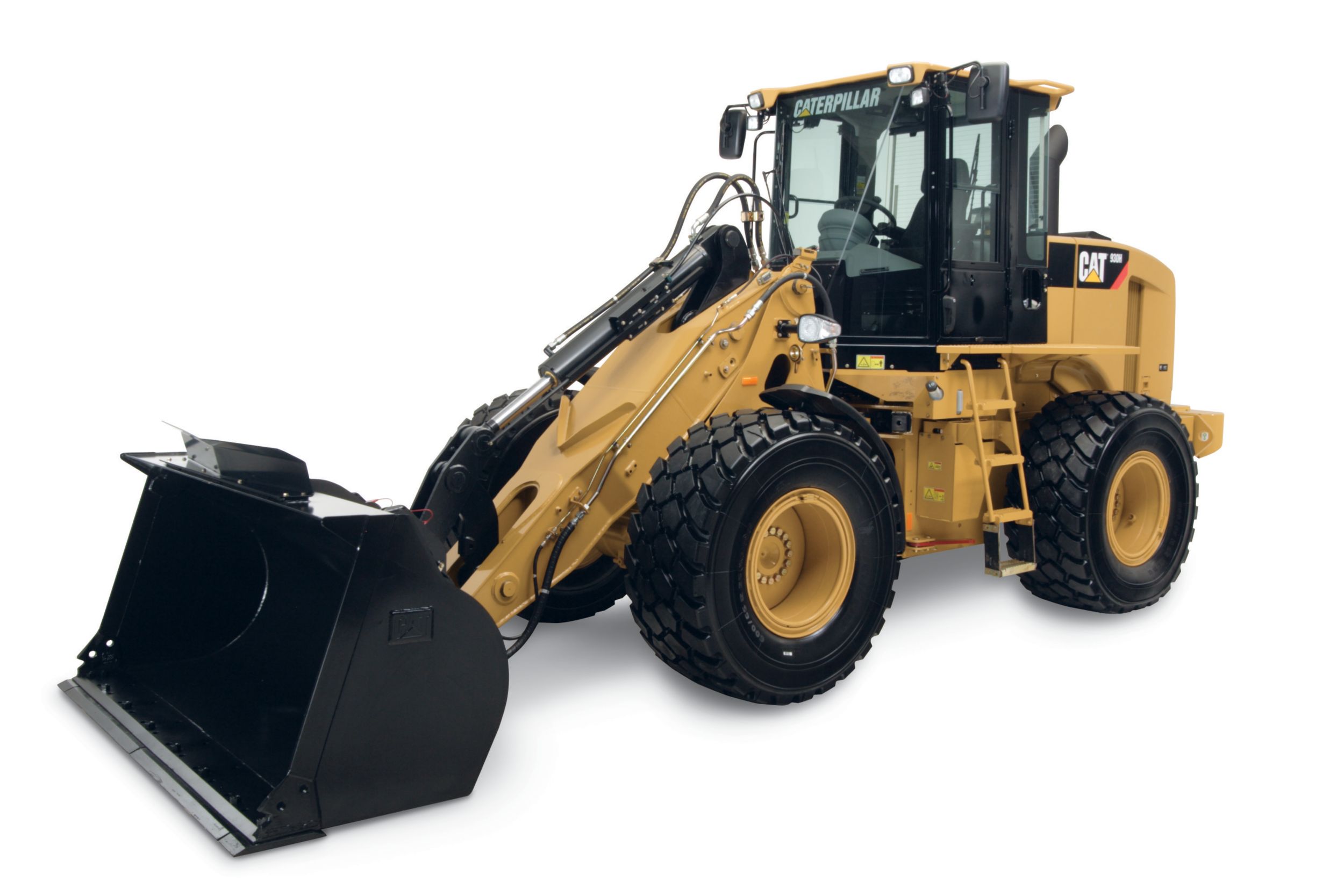

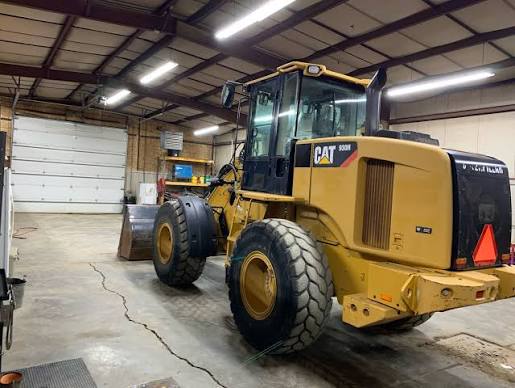

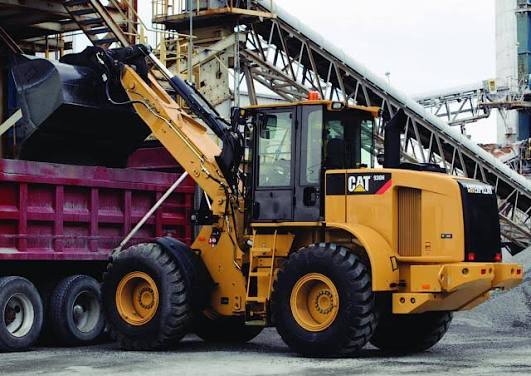

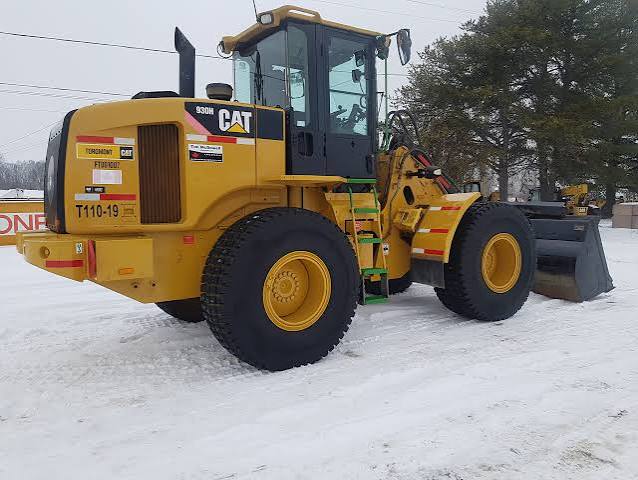

Caterpillar 930H Wheel Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,725 lb
Tire Size20.5R25 L3 XHA
Static Tipping Weight18,321 lb
Engine Oil Fluid Capacity4.0 gal
Front Axle/Diff Fluid Capacity6.9 gal
Rear Axle/Diff Fluid Capacity6.6 gal
Cooling System Fluid Capacity10.6 gal
Rated Bucket Capacity3.20 yd³
Engine Oil Capacity4.0 gal
Static Tipping Load - Bucket19,933 lb
Front Diff Fluid Capacity6.9 gal
Rear Diff Fluid Capacity6.7 gal
Static Tipping Load - Forks15,977 lb

Engine

Engine specifications
Engine ModelC6.6
Displacement403 in³
Power Measured @2,300 rpm
Number of Cylinders6
Max Torque547 lb-ft
MakeCat

Weights

Weights specifications
Operating Weight28,684 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity58.0 gal/min
Raise Time5.0 s
Lower Time2.8 s
Dump Time1.7 s
Relief Valve Setting3,755 psi
Pump TypeImpement Pump

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab130 in
Wheelbase115 in
Width Over Tires102 in
Reach at Max Lift and Dump43 in
Length with Bucket on Ground298 in
Hinge Pin - Max Height161 in
Length w/ Bucket on Ground300 in
Reach at Max Height and Dump37 in
Dump Clearance at Max Lift111 in
Max Lift Height154 in
Fork Tine Length48 in
Length with out Forks on Ground309 in

Transmission

Transmission specifications
Max Speed - Forward23.8 mph
Max Speed - Reverse15.0 mph
Transmission TypeStandard Transmission max travel speed
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - struck2.50 yd³
Dump Clearance at Max Raise115 in
Bucket Width101 in
