Caterpillar
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

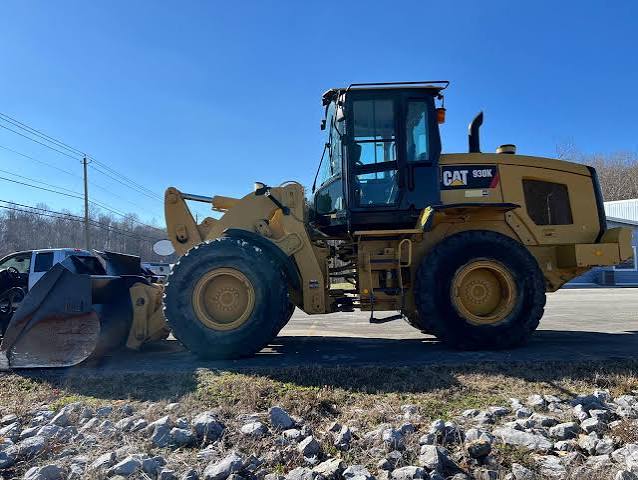

Image 1 of 5
Specifications
79 data points
Operating Specifications
| Operating Weight | 28,948 lb |
|---|---|
| Fuel Capacity | 51.5 gal |
| Tire Size | 20.5 |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Front Axle/Diff Fluid Capacity | 6.9 gal |
| Rear Axle/Diff Fluid Capacity | 6.9 gal |
| Cooling System Fluid Capacity | 8.5 gal |
| Transmission Fluid Capacity | 2.2 gal |
| Rated Bucket Capacity | 2.69 – 6.50 yd³ |
| Articulation Angle | 40 ° |
| Static Tipping Load - Full Turn | 18,444 lb |
| Reach - Full Lift and 45 degrees Dump | 41 in |
| Dump Clearance at Full Lift and 45 degrees Dump Angle | 111 in |
Engine
| Engine Model | C7.1 ACERT |
|---|---|
| Displacement | 402 in³ |
| Gross Power | 154.0 hp |
| Net Power | 152.0 hp |
| Number of Cylinders | 6 |
| Bore | 4 in |
| Stroke | 5 in |
| Net Torque | 551 lb-ft |
| Rated Net Power | 154.0 hp |
| EEC 80/1269 | 156.0 hp |
Weights
| Operating Weight | 30,479 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 50.0 gal/min |
|---|---|
| Raise Time | 5.7 s |
| Lower Time | 2.7 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 3,626 psi |
Dimensions
| Overall Length | 296 in |
|---|---|
| Height - Top of ROPS/FOPS | 131 in |
| Digging Depth | 4 in |
| Wheel Base | 118 in |
| Bucket Pin Height - Maximum Lift | 154 in |
| Centerline of Front Axle to Hitch | 59 in |
| Dump Angle at Maximum Lift | 49 ° |
| Rack Back Angle - Carry | 45 ° |
| Dump Clearance at Maximum Lift - 45 degrees | 111 in |
| Reach at Maximum Lift and 45 degrees Dump | 41 in |
| Rack Back Angle - Maximum Lift | 54 ° |
| Height - Center of Axle | 26 in |
| Overall Height - Bucket Raised | 202 in |
| Carry Height | 18 in |
| Length - Rear Axle to Bumper | 78 in |
Transmission
| Max Speed - Forward | 25.0 mph |
|---|---|
| Max Speed - Reverse | 25.0 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Forward - 1 | 8.0 mph |
| Reverse - 1 | 8.0 mph |
| 2 Forward | 8.0 mph |
| 3 Forward | 17.0 mph |
| 4 Forward | 25.0 mph |
Cab & Operator
| ROPS | SAE J1040 MAY94 ISO 3471-1994 |
|---|---|
| FOPS | SAE J/ISO 3449 APR98 Level II ISO 3449 1992 Level II |
Tires & Wheels
| Size | 20.5 R25 radial (L-3) |
|---|
Bucket
| Dump Clearance at Max Raise | 111 in |
|---|---|
| Bucket Capacities | 6.50 yd³ |
Service Refill Capacities
| Cooling System | 7.9 gal |
|---|---|
| Transmission | 2.2 gal |
| Crankcase | 5.3 gal |
| Fuel Tank | 51.5 gal |
| Hydraulic Tank | 23.8 gal |
| Front | 6.9 gal |
| Rear | 6.6 gal |
Steering System
| Steering Angle - Each Direction | 40 ° |
|---|---|
| Maximum Working Pressure | 3,500 psi |
| Steering Articulation | 40 ° |
| Steering Cylinder, Two, Bore | 3 in |
Loader Hydraulic System
| Dump | 1.5 s |
|---|---|
| Lower, Empty, Float Down | 2.7 s |
| Raise | 5.1 s |
| Total | 9.3 s |
| Pump Flow - Implement Pump | 50.0 gal/min |
| Bore (1) | 5 in |
| Bore (2) | 6 in |
| Stroke (1) | 29 in |
| Stroke (2) | 22 in |
| Hydraulic Cycle Time | 9.3 s |
