Caterpillar
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

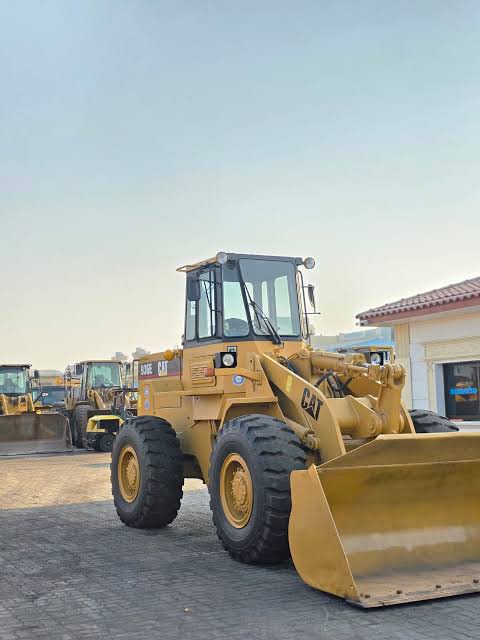

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 27,106 lb |
|---|---|
| Fuel Capacity | 52.9 gal |
| Tire Size | 20.5-25 12PR |
| Hydraulic System Fluid Capacity | 38.6 gal |
| Static Tipping Weight | 19,846 lb |
| Turning Radius | 235 in |
Engine
| Engine Model | 3304 |
|---|---|
| Displacement | 427 in³ |
| Gross Power | 135.5 hp |
Hydraulic System
| Raise Time | 6.5 s |
|---|---|
| Lower Time | 3.2 s |
| Dump Time | 1.8 s |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 120 in |
| Width Over Tires | 102 in |
| Reach at Max Lift and Dump | 39 in |
| Length with Bucket on Ground | 278 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 26.0 mph |
|---|---|
| Max Speed - Reverse | 28.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 2.80 yd³ |
|---|---|
| Bucket Capacity - struck | 2.39 yd³ |
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 28,032 lb |
| Bucket Width | 106 in |
