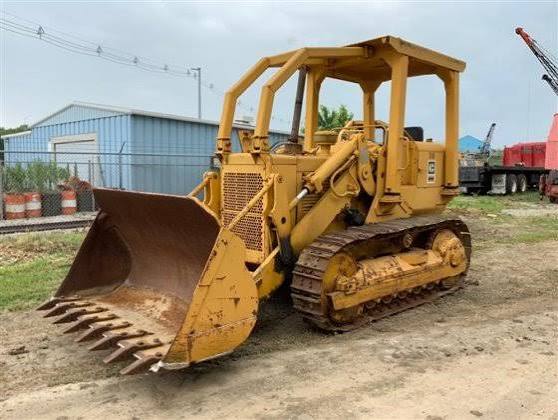

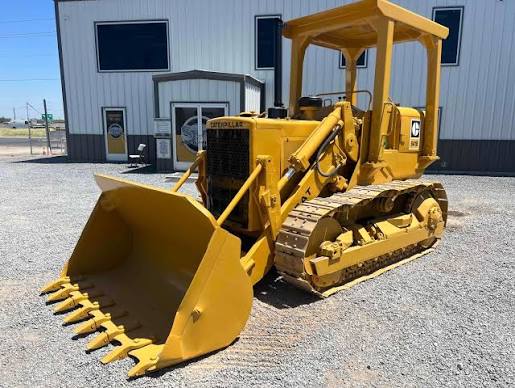

CaterpillarCaterpillar
933C LGP
Crawler Loader
38 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 24,899 lb |
|---|---|
| Bucket Capacity - struck | 1.29 yd³ |
| Max Speed | 6.9 mph |
| Fuel Capacity | 39.9 gal |
| Static Tipping Load | 15,829 lb |
| Breakout Force Bucket | 14,220 lb |
| Cooling System Fluid Capacity | 6.5 gal |
| Hydraulic System Fluid Capacity | 19.0 gal |
| Final Drive Fluid Capacity - each | 2.6 gal |
| Engine Oil Capacity | 5.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 19 A |
Engine
| Engine Model | 3304 |
|---|---|
| Displacement | 427 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 80.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 27.8 gal/min |
|---|---|
| Lower Time | 2.2 s |
| Raise Time | 6.7 s |
| Relief Valve Pressure | 2,500 psi |
| Dump Time | 2.5 s |
| Pump Type | Vane-type pump |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 113 in |
| Width to Outside of Tracks | 78 in |
| Length with Bucket on Ground | 179 in |
| Clearance at Full Height and Dump | 102 in |
| Reach at Dump Height | 41 in |
| Length to Front of Track | 127 in |
Undercarriage
| Length of Track on Ground | 81 in |
|---|---|
| Track Gauge | 60 in |
| Track Shoe Width | 13 in |
| Number of Track Rollers per Side | 5 |
| Ground Contact Area | 2,108 in³ |
| Number of Shoes per Side | 38 |
