Caterpillar

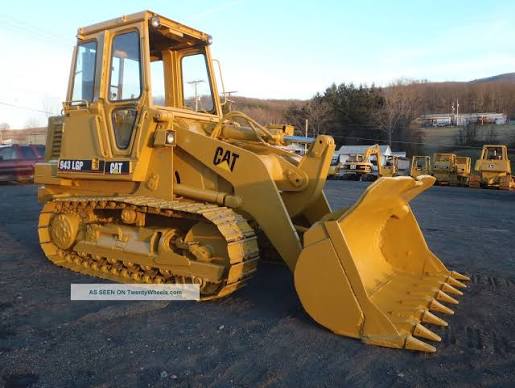

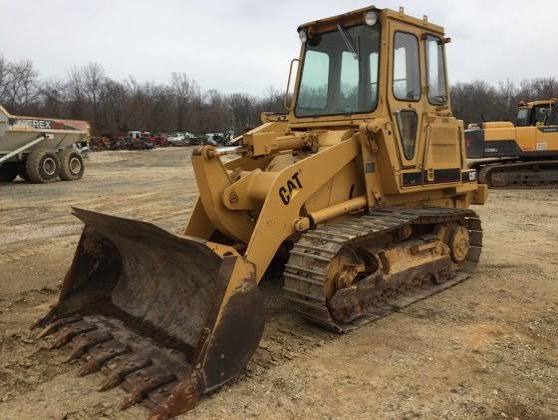

943 LGP
- Operating Weight
- 26,209 lb
- Bucket Capacity - heaped
- 1.60 yd³
- Bucket Capacity - struck
- 1.29 yd³
- Net Power
- 80.0 hp
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 26,209 lb |
|---|---|
| Bucket Capacity - heaped | 1.60 yd³ |
| Bucket Capacity - struck | 1.29 yd³ |
| Max Speed | 6.0 mph |
| Fuel Capacity | 42.1 gal |
| Static Tipping Load | 17,708 lb |
| Breakout Force Bucket | 21,139 lb |
| Hydraulic System Fluid Capacity | 15.4 gal |
Engine
| Engine Model | 3204 |
|---|---|
| Displacement | 317 in³ |
| Net Power | 80.0 hp |
Hydraulic System
| Lower Time | 2.2 s |
|---|---|
| Raise Time | 7.2 s |
| Dump Time | 1.6 s |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 120 in |
| Width to Outside of Tracks | 81 in |
| Length with Bucket on Ground | 215 in |
| Reach at Dump Height | 35 in |
| Clearance at Full Height and Dump | 106 in |
Undercarriage
| Length of Track on Ground | 85 in |
|---|---|
| Track Gauge | 67 in |
| Track Shoe Width | 18 in |
| Ground Pressure | 9 psi |
| Number of Track Rollers per Side | 6 |
| Ground Contact Area | 3,069 in³ |
