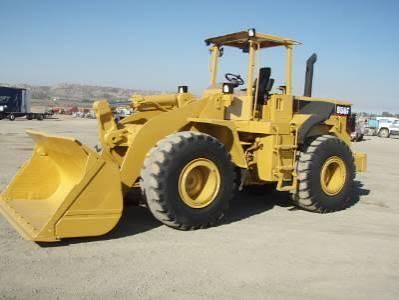

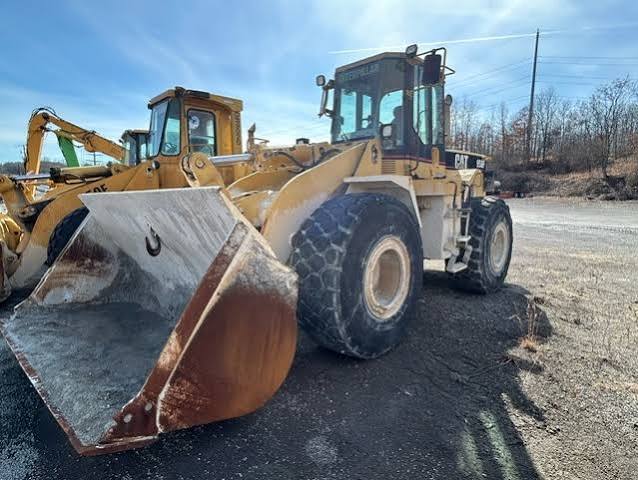

Caterpillar
950F
- Operating Weight
- 34,679 lb
- Bucket Capacity - heaped
- 3.81 yd³
- Gross Power
- 180.0 hp
- Net Power
- 170.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 34,679 lb |
|---|---|
| Fuel Capacity | 58.7 gal |
| Tire Size | 23.5-25 12PR |
| Hydraulic System Fluid Capacity | 40.5 gal |
| Static Tipping Weight | 23,243 lb |
| Operating Voltage | 24 V |
| Turning Radius | 253 in |
| Engine Oil Fluid Capacity | 5.3 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 9.6 gal |
| Rear Axle/Diff Fluid Capacity | 9.6 gal |
| Cooling System Fluid Capacity | 13.0 gal |
| Transmission Fluid Capacity | 9.0 gal |
Engine
| Engine Model | 3116 |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 180.0 hp |
| Net Power | 170.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 62.7 gal/min |
|---|---|
| Raise Time | 6.6 s |
| Lower Time | 3.0 s |
| Dump Time | 2.2 s |
| Relief Valve Setting | 3,000 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 139 in |
| Wheelbase | 126 in |
| Width Over Tires | 109 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 304 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 24.4 mph |
|---|---|
| Max Speed - Reverse | 26.7 mph |
| Transmission Type | Planetary powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.81 yd³ |
|---|---|
| Bucket Capacity - struck | 3.40 yd³ |
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 35,801 lb |
| Bucket Width | 111 in |
