Caterpillar

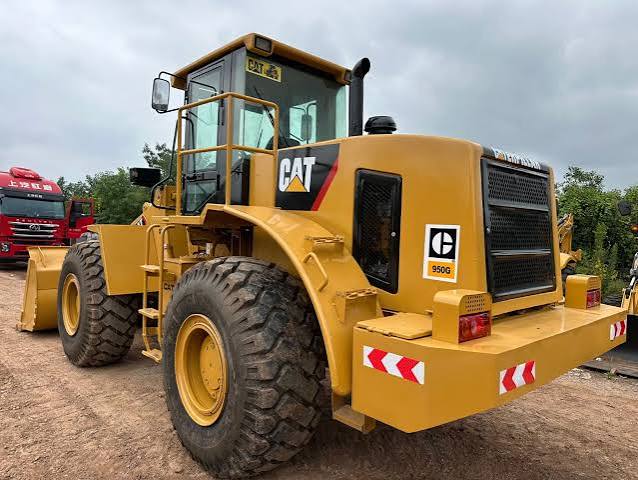

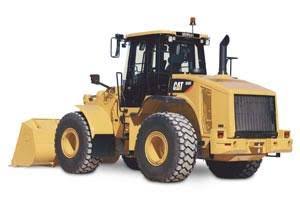

950G
- Operating Weight
- 39,203 lb
- Bucket Capacity - heaped
- 3.51 yd³
- Gross Power
- 180.0 hp
- Net Power
- 197.0 hp
1 / 5
Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 39,203 lb |
|---|---|
| Fuel Capacity | 78.0 gal |
| Hydraulic System Fluid Capacity | 40.5 gal |
| Static Tipping Weight | 26,885 lb |
| Breakout Force | 32,810 lb |
| Static Tipping Load - Full Turn | 22,944 lb |
| Dump Clearance | 114 in |
Engine
| Engine Model | Cat 3126 DITA |
|---|---|
| Displacement | 439 in³ |
| Gross Power | 180.0 hp |
| Net Power | 197.0 hp |
| Flywheel Power | 180.0 hp |
| Maximum Flywheel Power | 197.0 hp |
Weights
| Operating Weight | 39,200 lb |
|---|
Hydraulic System
| Raise Time | 6.3 s |
|---|---|
| Lower Time | 2.2 s |
| Dump Time | 2.2 s |
| Hydraulic Cycle Time - Dump | 2.2 s |
| Hydraulic Cycle Time - Total | 10.7 s |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 2.2 s |
| Hydraulic Cycle Time - Raise | 6.3 s |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 138 in |
| Width Over Tires | 114 in |
| Reach at Max Lift and Dump | 50 in |
| Length with Bucket on Ground | 317 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 25.2 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Forward - 1 | 4.3 mph |
| Reverse - 1 | 4.8 mph |
| Forward - 2 | 7.9 mph |
| Reverse - 2 | 8.7 mph |
| Forward - 3 | 13.9 mph |
| Reverse - 3 | 15.3 mph |
| Forward - 4 | 23.0 mph |
| Reverse - 4 | 25.2 mph |
| Travel Speed | 23.0 mph |
Bucket
| Bucket Capacity - heaped | 3.51 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 32,810 lb |
| Bucket Width | 117 in |
| Bucket Capacities | 4.50 yd³ |
| Maximum Bucket Capacity | 4.50 yd³ |
Service Refill Capacities
| Cooling System | 13.0 gal |
|---|---|
| Transmission | 9.0 gal |
| Crankcase | 8.0 gal |
| Differential - Final Drives - Front | 9.6 gal |
| Differential - Final Drives - Rear | 9.6 gal |
| Hydraulic Tank | 23.3 gal |
| Fuel Tank - Standard | 78.0 gal |
Axles
| Front | Fixed |
|---|---|
| Rear | Trunnion |
| Maximum Single-Wheel Rise and Fall | 19 in |
