Caterpillar

951C

Crawler Loader

Operating Weight
28,071 lb
Bucket Capacity - heaped
1.80 yd³
Bucket Capacity - struck
1.60 yd³
Net Power
95.0 hp
All crawler loaders

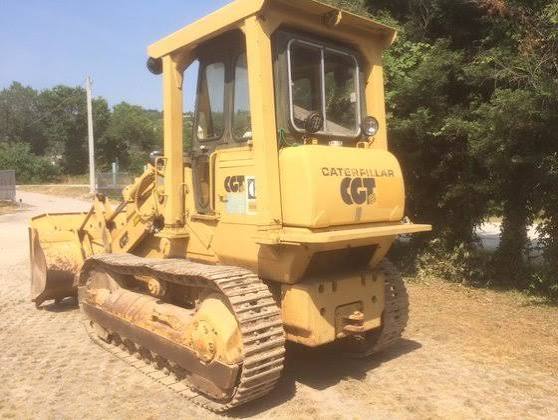

Caterpillar 951C Crawler Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,071 lb
Bucket Capacity - heaped1.80 yd³
Bucket Capacity - struck1.60 yd³
Max Speed7.2 mph
Fuel Capacity52.1 gal
Static Tipping Load18,867 lb
Breakout Force Bucket15,710 lb
Cooling System Fluid Capacity6.5 gal
Hydraulic System Fluid Capacity19.5 gal
Final Drive Fluid Capacity - each2.6 gal
Engine Oil Capacity5.0 gal
Operating Voltage24 V
Alternator Supplied Amperage19 A

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Power Measured @2,200 rpm
Net Power95.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity33.3 gal/min
Lower Time2.3 s
Raise Time6.6 s
Relief Valve Pressure2,500 psi
Dump Time2.4 s
Pump TypeVane-type pump

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab114 in
Width to Outside of Tracks78 in
Length with Bucket on Ground189 in
Clearance at Full Height and Dump109 in
Reach at Dump Height42 in
Length to Front of Track131 in

Undercarriage

Undercarriage specifications
Length of Track on Ground85 in
Track Gauge60 in
Track Shoe Width14 in
Number of Track Rollers per Side5
Ground Contact Area2,356 in³
Number of Shoes per Side39
