Caterpillar
953D
- Operating Weight
- 34,341 lb
- Bucket Capacity - heaped
- 2.30 yd³
- Bucket Capacity - struck
- 2.00 yd³
- Net Power
- 148.0 hp
1 / 5

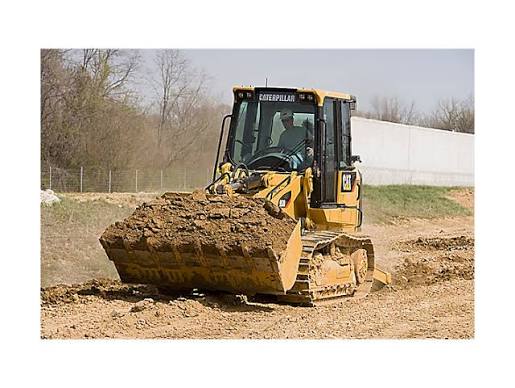

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 34,341 lb |
|---|---|
| Bucket Capacity - heaped | 2.30 yd³ |
| Bucket Capacity - struck | 2.00 yd³ |
| Max Speed | 5.8 mph |
| Fuel Capacity | 83.5 gal |
| Static Tipping Load | 25,162 lb |
| Breakout Force Bucket | 36,093 lb |
| Cooling System Fluid Capacity | 8.0 gal |
| Hydraulic System Fluid Capacity | 18.5 gal |
| Final Drive Fluid Capacity - each | 2.8 gal |
| Engine Oil Capacity | 4.4 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | C6.6 ACERT |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 148.0 hp |
| Number of Cylinders | 6 |
| Make | Cat |
Hydraulic System
| Pump Flow Capacity | 30.8 gal/min |
|---|---|
| Lower Time | 2.0 s |
| Raise Time | 5.9 s |
| Relief Valve Pressure | 3,990 psi |
| Dump Time | 1.3 s |
| Pump Type | Hydrostatic drive |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 122 in |
| Width to Outside of Tracks | 90 in |
| Length with Bucket on Ground | 234 in |
| Clearance at Full Height and Dump | 115 in |
| Reach at Dump Height | 40 in |
| Length to Front of Track | 173 in |
Undercarriage
| Length of Track on Ground | 93 in |
|---|---|
| Track Gauge | 71 in |
| Track Shoe Width | 19 in |
| Ground Pressure | 10 psi |
| Number of Track Rollers per Side | 6 |
| Ground Contact Area | 2,790 in³ |
| Number of Shoes per Side | 37 |
