Caterpillar

955L

Crawler Loader

Operating Weight
30,203 lb
Bucket Capacity - heaped
2.11 yd³
Bucket Capacity - struck
1.70 yd³
Net Power
130.0 hp
All crawler loaders

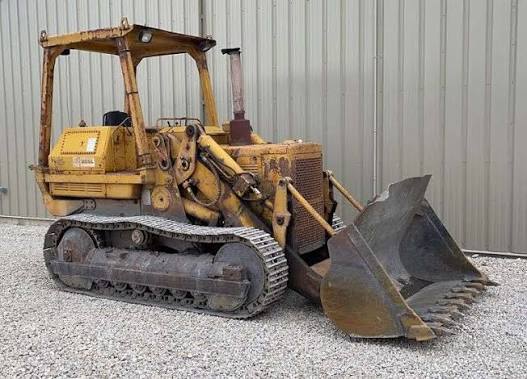

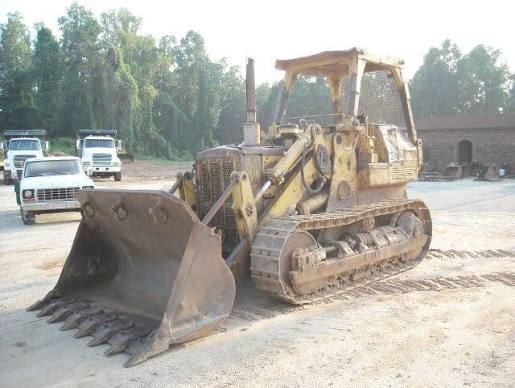

Caterpillar 955L Crawler Loader
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,203 lb
Bucket Capacity - heaped2.11 yd³
Bucket Capacity - struck1.70 yd³
Max Speed7.1 mph
Fuel Capacity62.9 gal
Static Tipping Load18,607 lb
Breakout Force Bucket22,930 lb
Cooling System Fluid Capacity39.1 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelD330
Displacement427 in³
Net Power130.0 hp
Number of Cylinders4
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Lower Time3.2 s
Raise Time6.6 s
Dump Time1.6 s

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab91 in
Width to Outside of Tracks85 in
Length with Bucket on Ground196 in
Clearance at Full Height and Dump115 in
Reach at Dump Height47 in
Length to Front of Track132 in

Undercarriage

Undercarriage specifications
Length of Track on Ground94 in
Track Gauge66 in
Track Shoe Width15 in
Number of Track Rollers per Side6
Ground Contact Area2,759 in³
