Caterpillar

963

Crawler Loader

Operating Weight
40,490 lb
Bucket Capacity - heaped
2.69 yd³
Bucket Capacity - struck
2.20 yd³
Net Power
150.0 hp
All crawler loaders

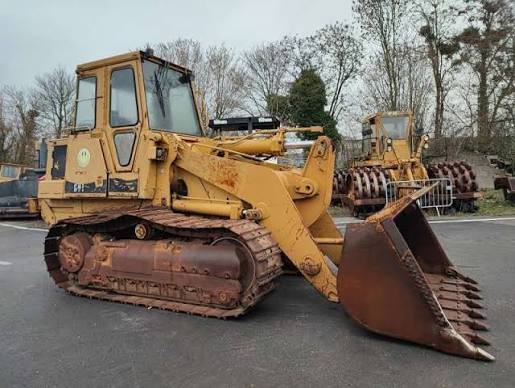

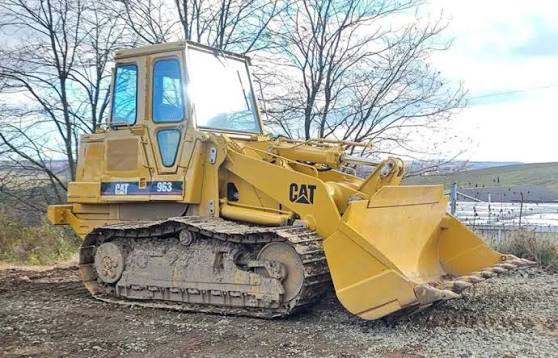

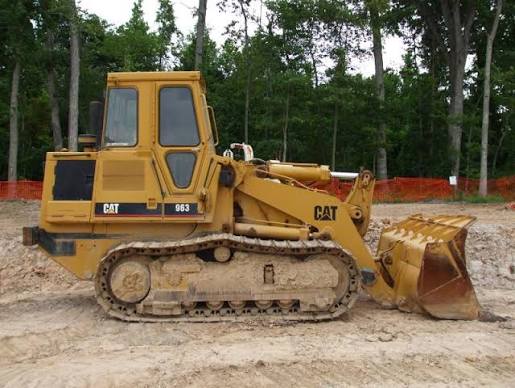

Caterpillar 963 Crawler Loader
1 / 5
Image 1 of 5
Image: cat.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,490 lb
Bucket Capacity - heaped2.69 yd³
Bucket Capacity - struck2.20 yd³
Max Speed6.3 mph
Fuel Capacity69.0 gal
Static Tipping Load27,165 lb
Breakout Force Bucket38,227 lb
Cooling System Fluid Capacity11.9 gal
Hydraulic System Fluid Capacity15.9 gal
Final Drive Fluid Capacity - each3.7 gal
Engine Oil Capacity5.1 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Power Measured @2,200 rpm
Net Power150.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity53.9 gal/min
Lower Time2.3 s
Raise Time6.2 s
Relief Valve Pressure2,750 psi
Dump Time1.3 s
Pump TypeVane-type pump

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab131 in
Width to Outside of Tracks91 in
Length with Bucket on Ground251 in
Clearance at Full Height and Dump124 in
Reach at Dump Height47 in
Length to Front of Track173 in

Undercarriage

Undercarriage specifications
Length of Track on Ground97 in
Track Gauge73 in
Track Shoe Width18 in
Ground Pressure12 psi
Number of Track Rollers per Side6
Ground Contact Area3,426 in³
Number of Shoes per Side37

General Specifications

General Specifications specifications
Net Power202.00 hp (150.63 kw) Starting 2021 Model Year
Operating Weight44,881.00 lbs (20,357.70 kg) Starting 2023 Model Year
Bucket Width102.80 in (261.11 cm) Starting 2021 Model Year
EngineC7.1 Starting 2023 Model Year
Rated Bucket Cap.3.2 cu yd Starting 2021 Model Year
Rated Bucket Capacity3.2 cu yd Starting 2023 Model Year
