Caterpillar

966F

Wheel Loader

Operating Weight
45,162 lb
Bucket Capacity - heaped
4.80 yd³
Gross Power
235.0 hp
Net Power
220.0 hp
All wheel loaders

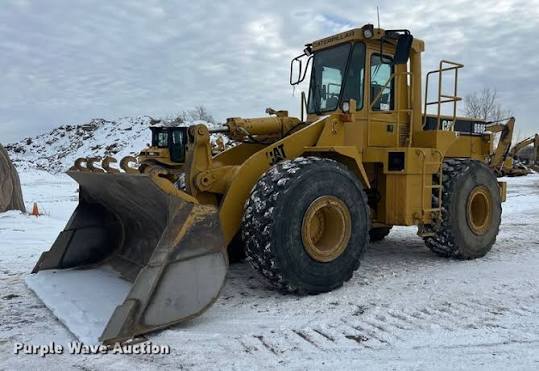

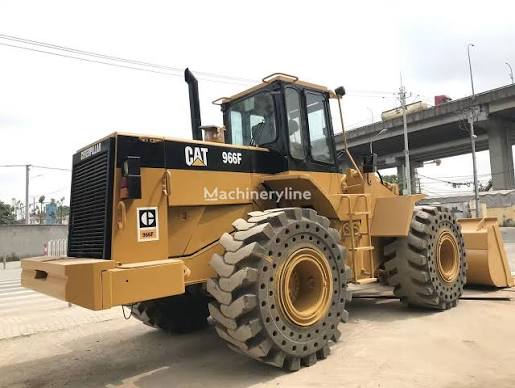

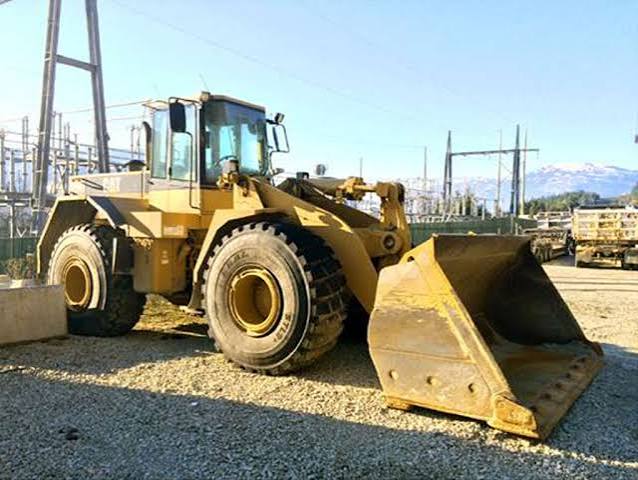

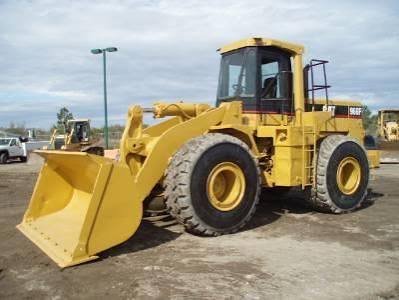

Caterpillar 966F Wheel Loader
1 / 5
Image 1 of 5
Image: mafal-machinery.en.made-in-china.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,162 lb
Fuel Capacity80.4 gal
Tire Size26.5-25 14PR
Hydraulic System Fluid Capacity54.2 gal
Static Tipping Weight30,825 lb
Operating Voltage24 V
Turning Radius268 in
Engine Oil Fluid Capacity7.4 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage50 A
Front Axle/Diff Fluid Capacity12.5 gal
Rear Axle/Diff Fluid Capacity12.5 gal
Cooling System Fluid Capacity10.9 gal
Transmission Fluid Capacity15.6 gal

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Power Measured @2,200 rpm
Gross Power235.0 hp
Net Power220.0 hp
Number of Cylinders6
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity79.8 gal/min
Raise Time7.1 s
Lower Time2.4 s
Dump Time2.0 s
Relief Valve Setting3,000 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab142 in
Wheelbase132 in
Width Over Tires117 in
Reach at Max Lift and Dump55 in
Length with Bucket on Ground330 in
Hinge Pin - Max Height163 in

Transmission

Transmission specifications
Max Speed - Forward23.4 mph
Max Speed - Reverse26.5 mph
Transmission TypePlanetary powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped4.80 yd³
Bucket Capacity - struck4.09 yd³
Dump Clearance at Max Raise113 in
Breakout Force48,446 lb
Bucket Width122 in
