Komatsu
Tata Hitachi
TWL3036

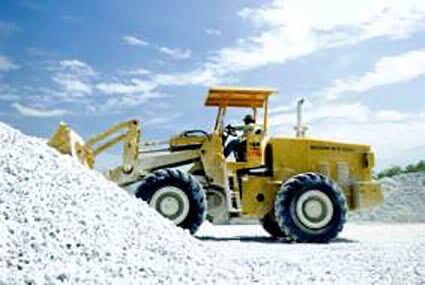

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 27,117 lb |
|---|---|
| Fuel Capacity | 59.8 gal |
| Tire Size | 20.5-25-12PR (L-3) |
| Static Tipping Weight | 21,385 lb |
| Turning Radius | 250 in |
| Rear Axle Oscillation | 24 ° |
| Cooling System Fluid Capacity | 10.1 gal |
Engine
| Engine Model | S6D105 |
|---|---|
| Displacement | 396 in³ |
| Gross Power | 157.0 hp |
| Aspiration | turbocharged |
Hydraulic System
| Raise Time | 5.3 s |
|---|---|
| Lower Time | 2.5 s |
| Dump Time | 2.5 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 114 in |
| Width Over Tires | 100 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 271 in |
| Hinge Pin - Max Height | 148 in |
Transmission
| Max Speed - Forward | 18.9 mph |
|---|---|
| Max Speed - Reverse | 20.1 mph |
| Transmission Type | TORQFLOW full power shift coutnershaft type full soft shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 26,230 lb |
| Bucket Width | 103 in |
