Caterpillar
972G
- Operating Weight
- 54,964 lb
- Bucket Capacity - heaped
- 4.80 yd³
- Gross Power
- 265.0 hp
- Net Power
- 275.0 hp
1 / 5

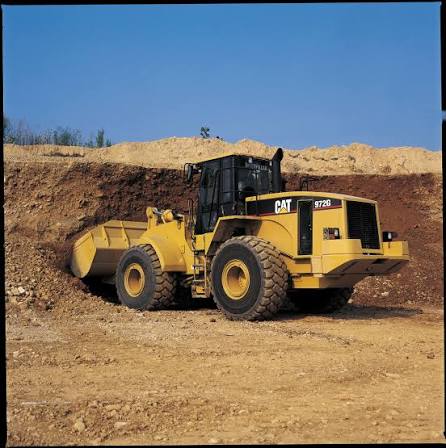

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 54,964 lb |
|---|---|
| Fuel Capacity | 108.4 gal |
| Hydraulic System Fluid Capacity | 54.7 gal |
| Static Tipping Weight | 40,398 lb |
Engine
| Engine Model | 3306DITA |
|---|---|
| Displacement | 641 in³ |
| Gross Power | 265.0 hp |
| Net Power | 275.0 hp |
Hydraulic System
| Raise Time | 6.6 s |
|---|---|
| Lower Time | 1.8 s |
| Dump Time | 1.6 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Width Over Tires | 118 in |
| Reach at Max Lift and Dump | 50 in |
| Length with Bucket on Ground | 356 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 26.1 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 130 in |
| Breakout Force | 51,210 lb |
| Bucket Width | 127 in |
