Mecalac

AS 210E

Wheel Loader

Operating Weight
33,069 lb
Net Power
175.0 hp
All wheel loaders

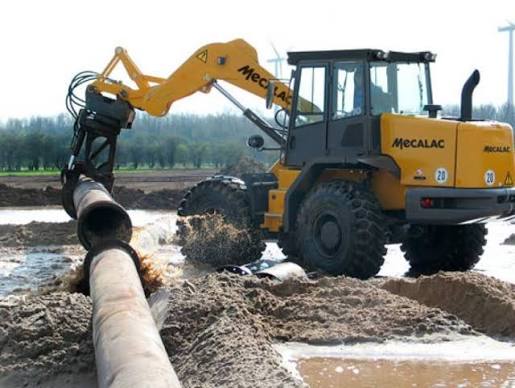

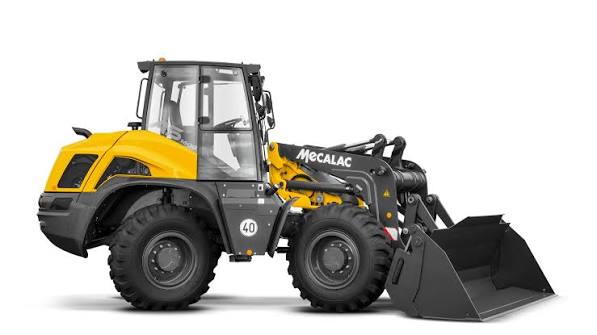

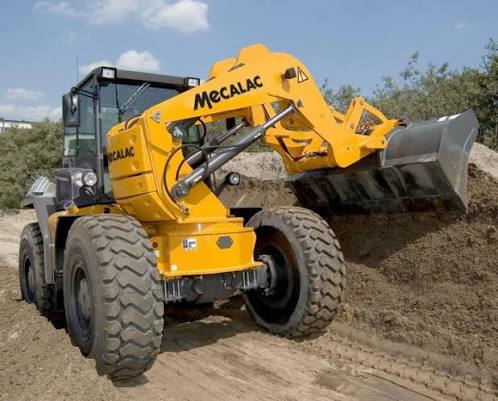

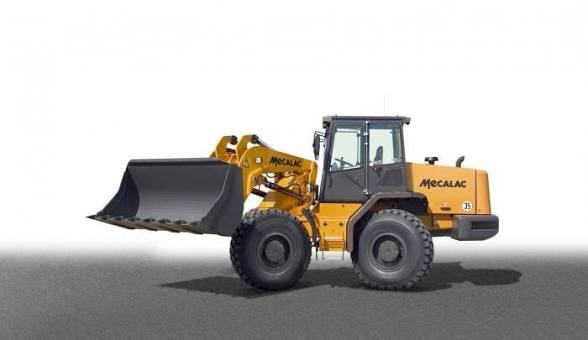

Mecalac AS 210E Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,069 lb
Fuel Capacity66.1 gal
Hydraulic System Fluid Capacity60.8 gal
Operating Voltage24 V
Engine Oil Fluid Capacity3.7 gal
Rear Axle Oscillation10 °
Front Axle/Diff Fluid Capacity6.7 gal
Rear Axle/Diff Fluid Capacity6.7 gal
Steering Angle25 °

Engine

Engine specifications
Engine ModelTCD 6.1 L6
Power Measured @2,200 rpm
Net Power175.0 hp
Torque Measured @1,450 rpm
Alternator100 A
Battery2 x 88 Ah

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab125 in
Length with Bucket on Ground282 in
Turning Radius197 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph

Bucket

Bucket specifications
Breakout Force—
Tipping load Standard bucket17,196 lb
Dumping angle, top45 °
Lifting force10600 newton
Payload on forks, max. turned, frontal10,362 lb
Thrust force11300 newton
Payload on forks, max. turned, max. swivelled14,551 lb
Tilting angle45 °
Tipping load Standard bucket, max. turned, 9016,535 lb
