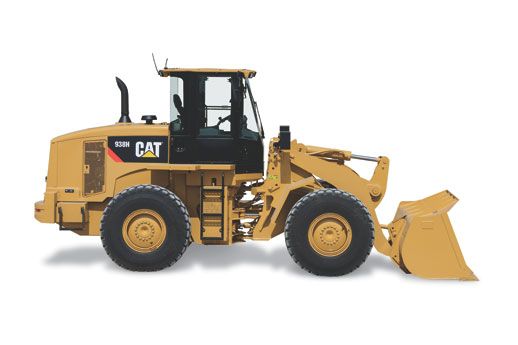

Caterpillar
938H
- Operating Weight
- 33,190 lb
- Bucket Capacity - heaped
- 3.70 yd³
- Gross Power
- 197.0 hp
- Net Power
- 180.0 hp
1 / 5

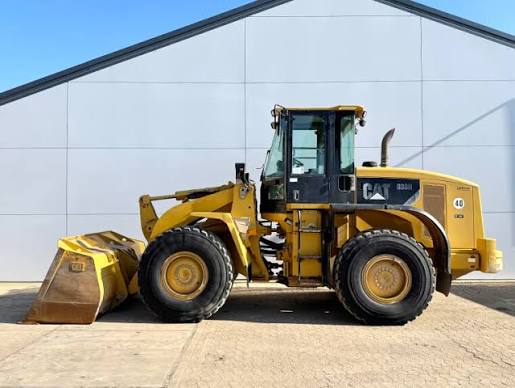

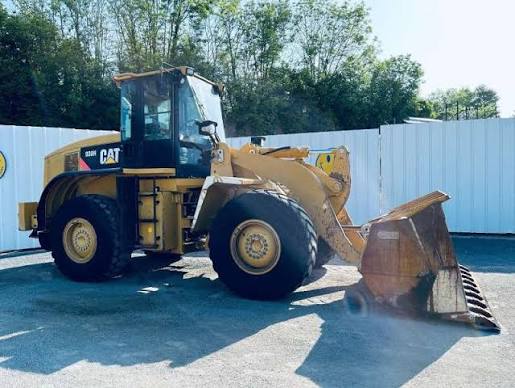

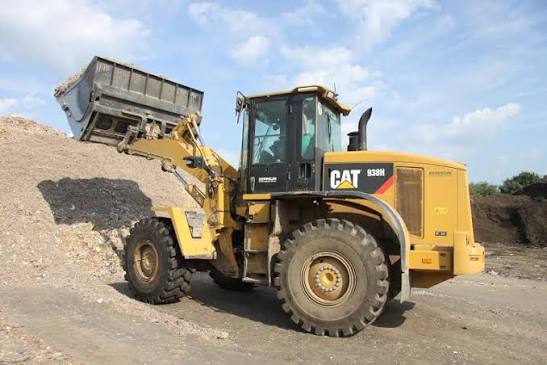

Image 1 of 5
Specifications
81 data points
Operating Specifications
| Operating Weight | 33,190 lb |
|---|---|
| Fuel Capacity | 65.3 gal |
| Tire Size | 20.5R25 |
| Hydraulic System Fluid Capacity | 23.5 gal |
| Static Tipping Weight | 25,551 lb |
| Operating Voltage | 24 V |
| Turning Radius | 474 in |
| Engine Oil Fluid Capacity | 4.6 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 15.1 gal |
| Rear Axle/Diff Fluid Capacity | 14.0 gal |
| Cooling System Fluid Capacity | 9.5 gal |
| Transmission Fluid Capacity | 11.4 gal |
| Rated Bucket Capacity | 3.65 yd³ |
| Breakout Force | 27,576 lb |
| Static Tipping Load - Full Turn | 22,207 lb |
| Dump Clearance at Full Lift and 45 degrees Dump Angle | 113 in |
Engine
| Engine Model | 6.6 ACERT |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 197.0 hp |
| Net Power | 180.0 hp |
| Number of Cylinders | 6 |
| Make | Cat |
| Stroke | 5 in |
| Bore | 4 in |
| Torque Rise | 38.0 % |
| Rated Net Power | 172.0 hp |
| EEC 80/1269 | 180.0 hp |
Weights
| Operating Weight | 33,190 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 77.9 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 2.7 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 1,000 psi |
| Pump Type | Piston |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 119 in |
| Overall Length | 283 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 289 in |
| Hinge Pin - Max Height | 151 in |
| Height - Top of ROPS/FOPS | 132 in |
| Digging Depth | 2 in |
| Wheel Base | 118 in |
| Bucket Pin Height - Maximum Lift | 151 in |
| Dump Angle at Maximum Lift | 50 ° |
| Rack Back Angle - Carry | 50 ° |
| Rack Back Angle - Maximum Lift | 65 ° |
| Reach at Maximum Lift and 45 degrees Dump | 40 in |
| Dump Clearance at Maximum Lift - 45 degrees | 114 in |
Transmission
| Max Speed - Forward | 26.8 mph |
|---|---|
| Max Speed - Reverse | 15.8 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Forward - 1 | 5.0 mph |
| Reverse - 1 | 5.0 mph |
| 2 Forward | 9.1 mph |
| 3 Forward | 15.8 mph |
| 4 Forward | 26.8 mph |
Cab & Operator
| ROPS | SAE J1040 APR88 ISO 3471:1994 |
|---|---|
| FOPS | SAE J1040 APR88 ISO 3471:1994 |
Tires & Wheels
| Size | 20.5 R25 |
|---|
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Bucket Capacity - struck | 3.20 yd³ |
| Breakout Force | 27,576 lb |
| Bucket Width | 107 in |
| Bucket Capacities | 4.00 yd³ |
Service Refill Capacities
| Cooling System | 9.5 gal |
|---|---|
| Transmission | 11.4 gal |
| Crankcase | 4.6 gal |
| Fuel Tank | 65.3 gal |
| Hydraulic Tank | 23.5 gal |
Loader Hydraulic System
| Dump | 1.4 s |
|---|---|
| Lower, Empty, Float Down | 2.7 s |
| Raise | 5.4 s |
| Total | 9.8 s |
