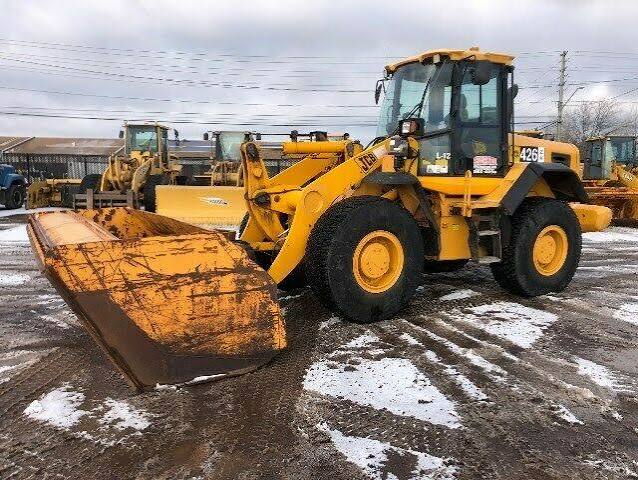

JCB 426ZX Wheel Loader
1 / 5
Image 1 of 5
Image: boomandbucket.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Tire Size20.5R25 XHA (L3)
Static Tipping Weight19,996 lb
Operating Voltage24 V
Turning Radius228 in
Engine Oil Fluid Capacity3.7 gal
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity10.4 gal
Rear Axle/Diff Fluid Capacity9.8 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket23,153 lb
Front Diff Fluid Capacity10.3 gal
Rear Diff Fluid Capacity9.8 gal
Static Tipping Load - Forks17,024 lb

Engine

Engine specifications
Power Measured @2,200 rpm
Number of Cylinders6
Max Torque540 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time4.4 s
Lower Time2.7 s
Relief Valve Setting3,625 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase119 in
Width Over Tires98 in
Reach at Max Lift and Dump43 in
Length with Bucket on Ground267 in
Hinge Pin - Max Height144 in
Length w/ Bucket on Ground270 in
Dump Clearance at Max Lift118 in
Reach at Max Height and Dump39 in
Max Lift Height146 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward24.0 mph
Max Speed - Reverse15.1 mph
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Dump Clearance at Max Raise113 in
Bucket Width101 in
