Kawasaki

60ZV

Wheel Loader

Operating Weight
20,027 lb
Bucket Capacity - heaped
2.30 yd³
Net Power
119.0 hp
All wheel loaders

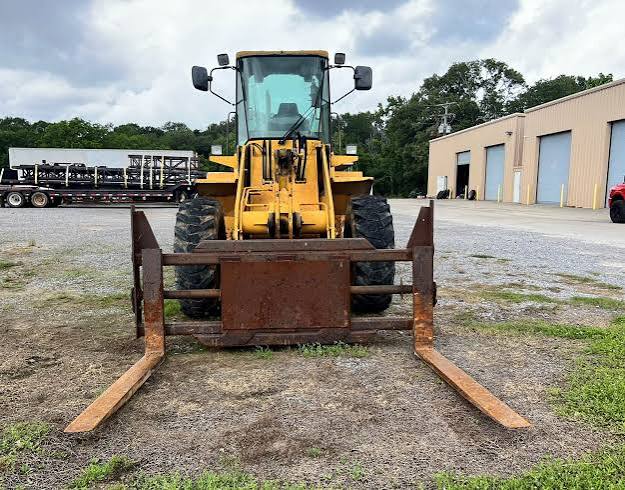

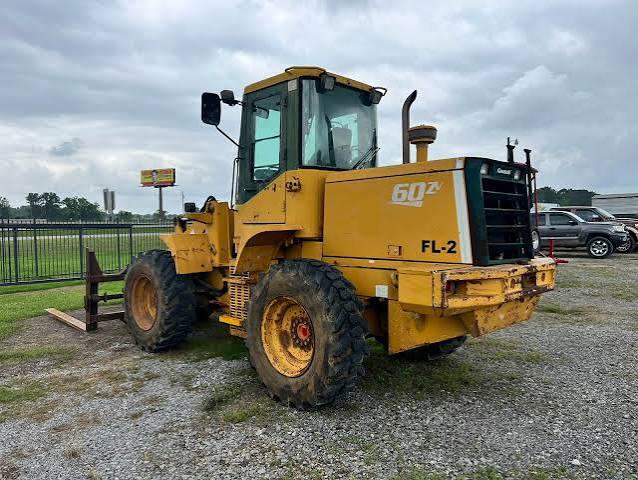

Kawasaki 60ZV Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,027 lb
Fuel Capacity46.3 gal
Tire Size15.5x25-12PR (L-2)
Hydraulic System Fluid Capacity26.5 gal
Static Tipping Weight17,417 lb
Operating Voltage24 V
Turning Radius214 in
Engine Oil Fluid Capacity3.5 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage50 A
Front Axle/Diff Fluid Capacity5.3 gal
Rear Axle/Diff Fluid Capacity5.3 gal
Cooling System Fluid Capacity14.6 gal
Transmission Fluid Capacity5.3 gal

Engine

Engine specifications
Engine ModelBB 6BG1T
Displacement396 in³
Power Measured @2,200 rpm
Net Power119.0 hp
Number of Cylinders6
Aspirationnatural
Torque Measured @1,600 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity31.0 gal/min
Raise Time6.0 s
Lower Time3.0 s
Dump Time1.2 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab124 in
Wheelbase107 in
Width Over Tires91 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground263 in
Hinge Pin - Max Height142 in

Transmission

Transmission specifications
Max Speed - Forward21.1 mph
Max Speed - Reverse21.1 mph
Transmission Typefull power shift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Bucket Capacity - struck2.00 yd³
Dump Clearance at Max Raise108 in
Breakout Force18,500 lb
Bucket Width97 in
