Caterpillar

980C

Wheel Loader

Bucket Capacity - heaped
5.30 yd³
Net Power
270.0 hp
All wheel loaders

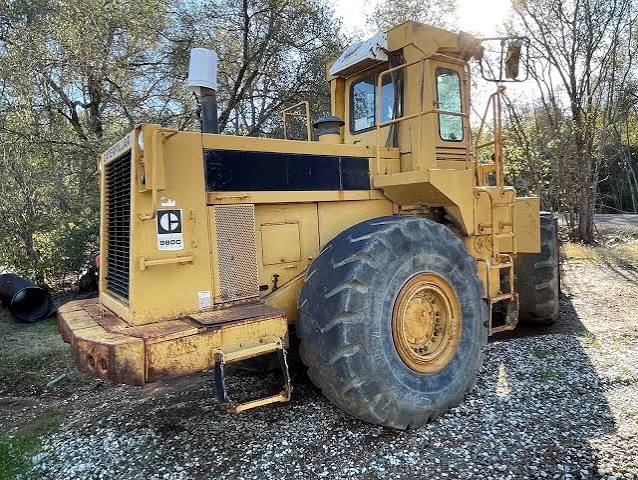

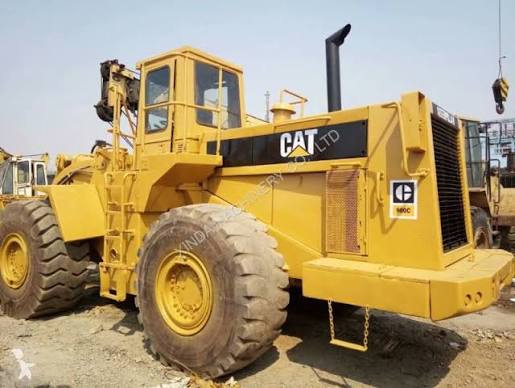

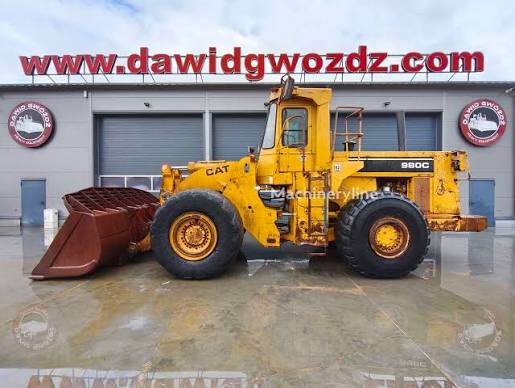

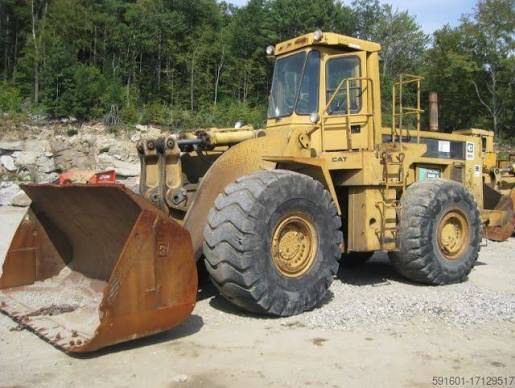

Caterpillar 980C Wheel Loader
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.7 gal
Tire Size26.5-25 20 PR(L-4)
Hydraulic System Fluid Capacity55.0 gal
Static Tipping Weight40,764 lb

Engine

Engine specifications
Engine Model3406
Displacement891 in³
Net Power270.0 hp

Hydraulic System

Hydraulic System specifications
Raise Time7.3 s
Lower Time3.4 s
Dump Time2.0 s

Dimensions

Dimensions specifications
Height - Top of Cab151 in
Reach at Max Lift and Dump53 in
Length with Bucket on Ground340 in

Transmission

Transmission specifications
Max Speed - Forward15.3 mph
Max Speed - Reverse24.7 mph
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped5.30 yd³
Dump Clearance at Max Raise126 in
Breakout Force58,880 lb
Bucket Width133 in
