John Deere

544E TC

Wheel Loader

Operating Weight
24,621 lb
Bucket Capacity - heaped
2.30 yd³
Gross Power
120.0 hp
Net Power
115.0 hp
All wheel loaders

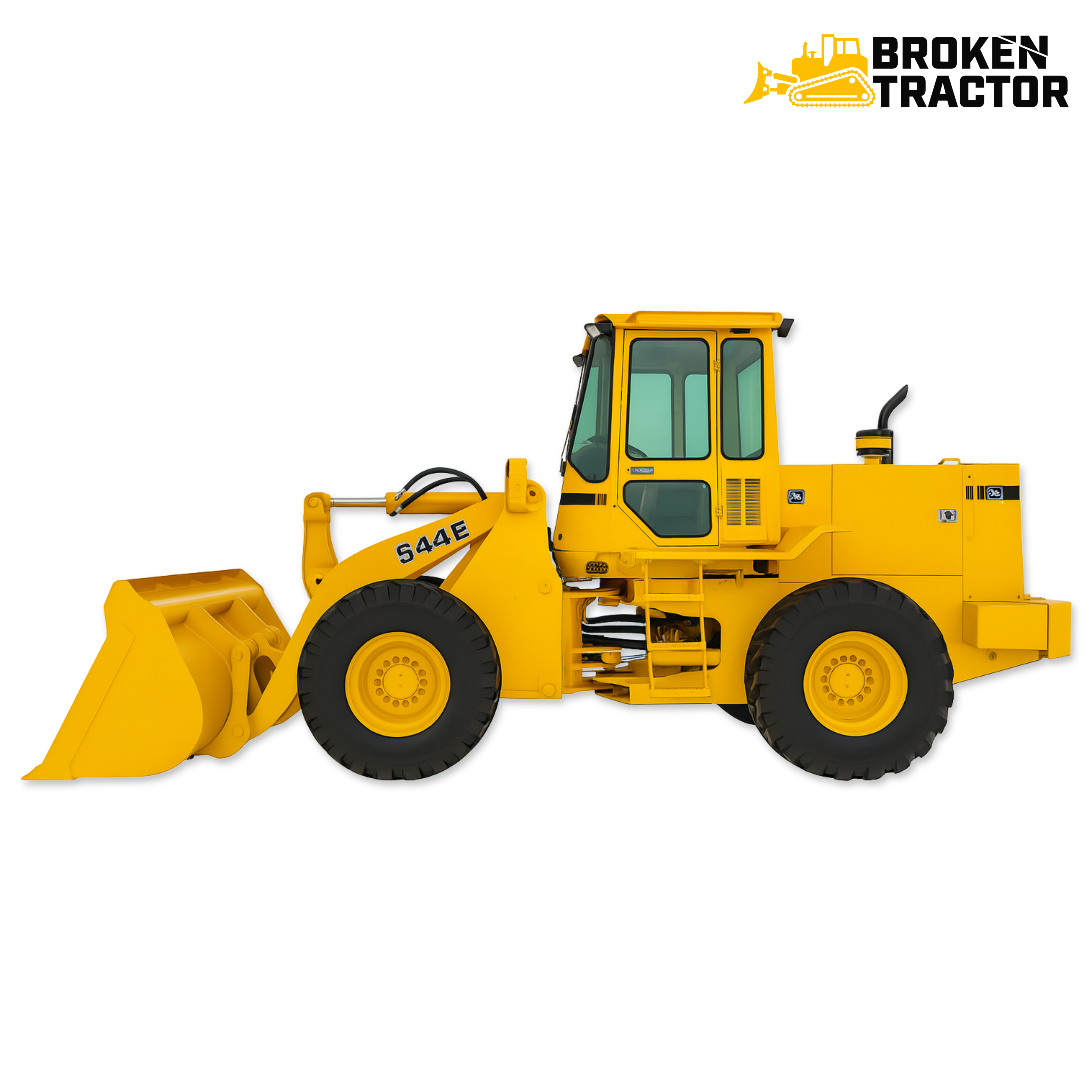

John Deere 544E TC Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,621 lb
Fuel Capacity55.0 gal
Tire Size15.5-25
Hydraulic System Fluid Capacity20.1 gal
Operating Voltage12 V
Turning Radius196 in
Rear Axle Oscillation22 °
Alternator Supplied Amperage65 A
Cooling System Fluid Capacity6.4 gal
Transmission Fluid Capacity2.6 gal
Engine Oil Capacity4.5 gal
Static Tipping Load - Bucket16,943 lb
Front Diff Fluid Capacity4.3 gal
Rear Diff Fluid Capacity4.3 gal
Static Tipping Load - Forks12,879 lb
Static Tipping Load - Material Handler8,318 lb

Engine

Engine specifications
Engine Model6359T
Displacement359 in³
Power Measured @2,200 rpm
Gross Power120.0 hp
Net Power115.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque343 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.3 gal/min
Raise Time5.8 s
Lower Time3.2 s
Dump Time1.9 s
Relief Valve Setting2,750 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab125 in
Wheelbase115 in
Width Over Tires94 in
Hinge Pin - Max Height149 in
Length w/ Bucket on Ground280 in
Dump Clearance at Max Lift111 in
Reach at Max Height and Dump42 in
Max Lift Height150 in
Fork Tine Length48 in
Length with out Forks on Ground301 in

Transmission

Transmission specifications
Max Speed - Forward24.6 mph
Max Speed - Reverse17.2 mph
Transmission TypePower Shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Bucket Capacity - struck2.11 yd³
Breakout Force20,843 lb
