Volvo
BM 4400
- Operating Weight
- 24,582 lb
- Bucket Capacity - heaped
- 2.50 yd³
- Gross Power
- 143.0 hp
- Net Power
- 128.0 hp
1 / 5

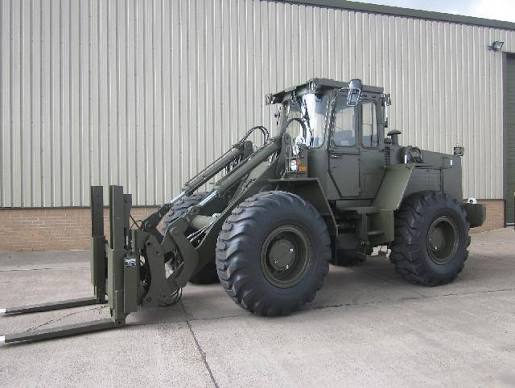

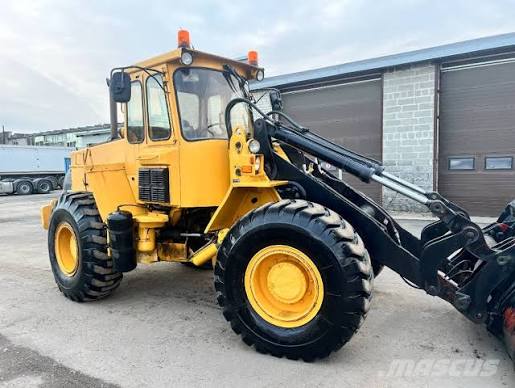

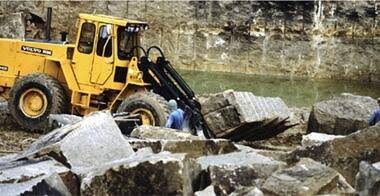

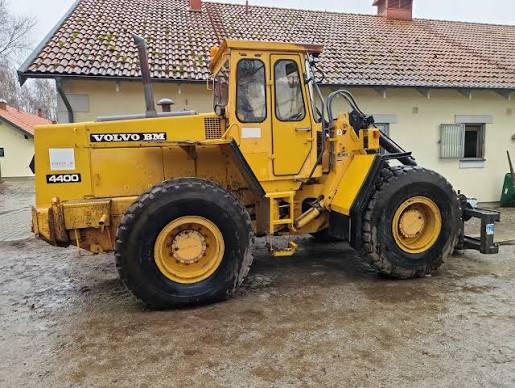

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 24,582 lb |
|---|---|
| Fuel Capacity | 51.6 gal |
| Tire Size | 20.5R25 |
| Hydraulic System Fluid Capacity | 27.8 gal |
| Static Tipping Weight | 17,747 lb |
| Operating Voltage | 24 V |
| Turning Radius | 205 in |
| Engine Oil Fluid Capacity | 4.0 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 45 A |
| Front Axle/Diff Fluid Capacity | 6.1 gal |
| Rear Axle/Diff Fluid Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 7.7 gal |
| Transmission Fluid Capacity | 6.4 gal |
Engine
| Engine Model | TD 60 B |
|---|---|
| Displacement | 335 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 143.0 hp |
| Net Power | 128.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 55.5 gal/min |
|---|---|
| Raise Time | 6.4 s |
| Lower Time | 3.8 s |
| Dump Time | 4.0 s |
| Relief Valve Setting | 2,130 psi |
| Pump Type | Vane pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 113 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 263 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 24.3 mph |
| Transmission Type | power-shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 2.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 19,840 lb |
| Bucket Width | 100 in |
