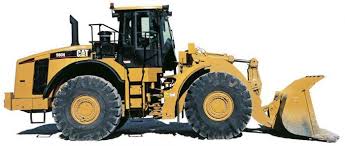

Caterpillar
980H
- Operating Weight
- 66,489 lb
- Bucket Capacity - heaped
- 5.49 yd³
- Gross Power
- 355.0 hp
- Net Power
- 318.0 hp
1 / 5
Image 1 of 5
Specifications
93 data points
Operating Specifications
| Operating Weight | 66,489 lb |
|---|---|
| Fuel Capacity | 127.0 gal |
| Tire Size | 29.5-25 |
| Hydraulic System Fluid Capacity | 66.0 gal |
| Static Tipping Weight | 50,201 lb |
| Operating Voltage | 24 V |
| Turning Radius | 313 in |
| Engine Oil Fluid Capacity | 10.0 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 23.0 gal |
| Rear Axle/Diff Fluid Capacity | 23.0 gal |
| Cooling System Fluid Capacity | 22.0 gal |
| Transmission Fluid Capacity | 16.0 gal |
| Rated Bucket Capacity | 5.00 – 8.00 yd³ |
| Breakout Force | 44,775 lb |
| Static Tipping Load - Full Turn | 42,989 lb |
| Dump Clearance | 130,119 in |
Engine
| Engine Model | Cat C15 ACERT |
|---|---|
| Displacement | 928 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 355.0 hp |
| Net Power | 318.0 hp |
| Number of Cylinders | 6 |
| Make | Cat |
| Stroke | 7 in |
| Bore | 5 in |
| Gross Power - SAE J1995 | 393.0 hp |
| Net Power - ISO 9249 | 349.0 hp |
| Net Power - SAE J1349 | 349.0 hp |
| Net Power - 80/1269/EEC | 353.0 hp |
Weights
| Operating Weight | 67,294 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 123.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.4 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | Gear |
| Hydraulic Cycle Time - Dump | 2.1 s |
| Hydraulic Cycle Time - Total | 11.5 s |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 3.4 s |
| Hydraulic Cycle Time - Raise | 6.0 s |
| Bucket/Work Tool System - Pump Output | 123.0 gal/min |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 149 in |
| Wheelbase | 146 in |
| Width Over Tires | 127 in |
| Reach at Max Lift and Dump | 61 in |
| Length with Bucket on Ground | 373 in |
| Hinge Pin - Max Height | 178 in |
| Height - Top of ROPS/FOPS | 149 in |
| Wheel Base | 146 in |
| Height - Top of Hood | 107 in |
| Height - Top of Exhaust | 146 in |
| Centerline of Rear Axle to Hitch | 73 in |
| Centerline Rear Axle to Edge of Counterweight | 98 in |
| B-Pin Height - Standard | 178 in |
Transmission
| Max Speed - Forward | 22.6 mph |
|---|---|
| Max Speed - Reverse | 25.8 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Forward - 1 | 4.1 mph |
| Reverse - 1 | 4.7 mph |
| Forward - 2 | 7.3 mph |
| Reverse - 2 | 8.4 mph |
| Forward - 3 | 12.9 mph |
| Reverse - 3 | 14.7 mph |
| Forward - 4 | 22.6 mph |
| Reverse - 4 | 25.8 mph |
Brakes & Steering
| Brakes | Meets required standards. |
|---|
Cab & Operator
| ROPS/FOPS | Meets SAE and ISO standards. |
|---|
Tires & Wheels
| Tires | Choose from a variety of tires to match your application. |
|---|
Bucket
| Bucket Capacity - heaped | 5.49 yd³ |
|---|---|
| Bucket Capacity - struck | 4.80 yd³ |
| Dump Clearance at Max Raise | 131 in |
| Breakout Force | 61,425 lb |
| Bucket Width | 139 in |
| Bucket Capacities | — |
| Maximum Bucket Capacity | 8.00 yd³ |
| Reference Bucket Capacity | 5.49 yd³ |
| Breakout Force - Reference Bucket | 61,373 lb |
| Type - Reference bucket | General purpose with Teeth |
Service Refill Capacities
| Cooling System | 22.0 gal |
|---|---|
| Transmission | 16.0 gal |
| Crankcase | 17.0 gal |
| Differential - Final Drives - Front | 23.0 gal |
| Differential - Final Drives - Rear | 23.0 gal |
| Hydraulic Tank | 33.0 gal |
| Fuel Tank - Standard | 127.0 gal |
Axles
| Front | Fixed front |
|---|---|
| Rear | Oscillating +/- 13? |
| Maximum Single-Wheel Rise and Fall | 22 in |

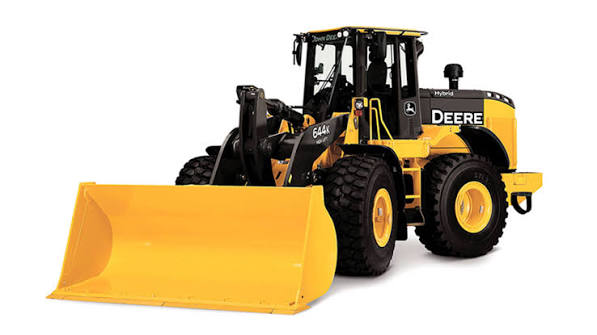

Comparable machines
