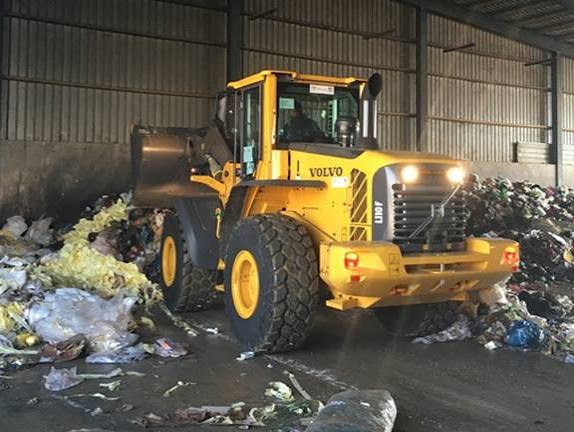

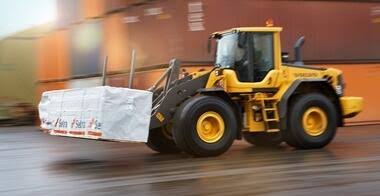

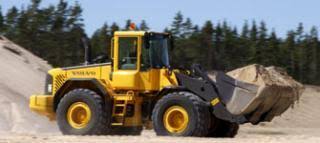

Volvo
L110F
- Operating Weight
- 40,014 lb
- Bucket Capacity - heaped
- 3.70 yd³
- Gross Power
- 228.0 hp
- Net Power
- 226.7 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 40,014 lb |
|---|---|
| Fuel Capacity | 71.1 gal |
| Tire Size | 23.5 R25 |
| Hydraulic System Fluid Capacity | 35.2 gal |
| Static Tipping Weight | 29,630 lb |
| Operating Voltage | 24 V |
| Turning Radius | 251 in |
| Engine Oil Fluid Capacity | 5.6 gal |
| Rear Axle Oscillation | 13 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 9.6 gal |
| Rear Axle/Diff Fluid Capacity | 10.9 gal |
| Cooling System Fluid Capacity | 18.5 gal |
| Transmission Fluid Capacity | 10.1 gal |
| Rated Bucket Capacity | 3.51 – 12.40 yd³ |
Engine
| Engine Model | D7ELBE3 |
|---|---|
| Displacement | 433 in³ |
| Power Measured @ | 1,700 rpm |
| Gross Power | 228.0 hp |
| Net Power | 226.7 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1,500 rpm |
| Make | Volvo |
Weights
| Operating Weight | 40,340 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 38.4 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 2.5 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 3,421 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 126 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 49 in |
| Length with Bucket on Ground | 318 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 23.0 mph |
| Transmission Type | Automatic Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Bucket Width | 114 in |
