Mecalac

AS 1600

Wheel Loader

Operating Weight
24,074 lb
Net Power
136.0 hp
All wheel loaders

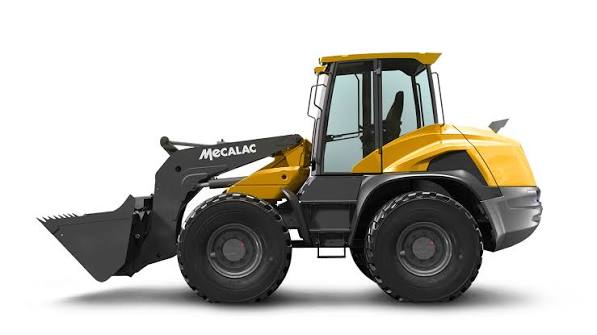

Mecalac AS 1600 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,074 lb
Fuel Capacity39.7 gal
Tire Size175-25
Hydraulic System Fluid Capacity42.3 gal
Operating Voltage24 V
Engine Oil Fluid Capacity2.2 gal
Rear Axle Oscillation10 °
Front Axle/Diff Fluid Capacity5.6 gal
Rear Axle/Diff Fluid Capacity4.9 gal
Steering Angle35 °

Engine

Engine specifications
Engine ModelTCD 36 L4
Power Measured @2,200 rpm
Net Power136.0 hp
Torque Measured @1,600 rpm
Alternator120 A
Battery2 x 95 Ah

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab122 in
Wheelbase90 in
Length with Bucket on Ground259 in
Turning Radius172 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph

Bucket

Bucket specifications
Breakout Force—
Tipping load Standard bucket13,228 lb
Dumping angle, top53 °
Lifting force6900 newton
Payload on forks, max. turned, frontal9,094 lb
Thrust force9000 newton
Payload on forks, max. turned, max. swivelled8,697 lb
Tilting angle45 °
Tipping load Standard bucket, max. turned, 9013,250 lb
