John Deere

544G

Wheel Loader

Operating Weight
24,092 lb
Bucket Capacity - heaped
2.69 yd³
Gross Power
125.0 hp
Net Power
120.0 hp
All wheel loaders

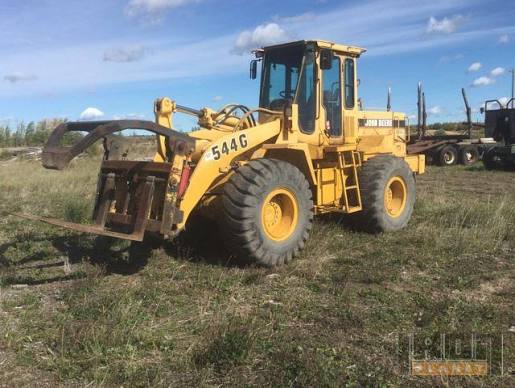

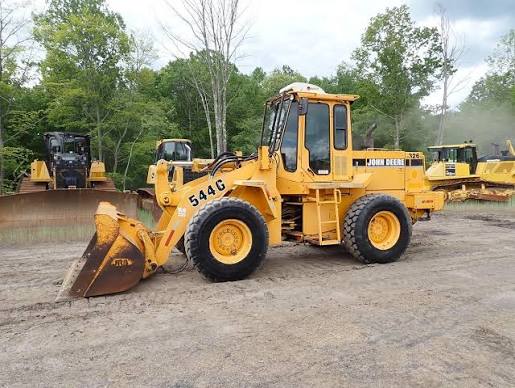

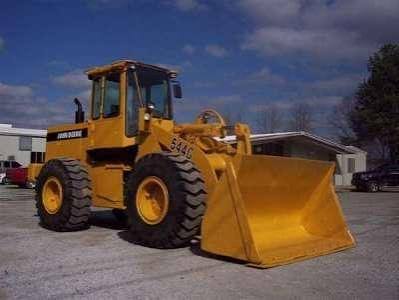

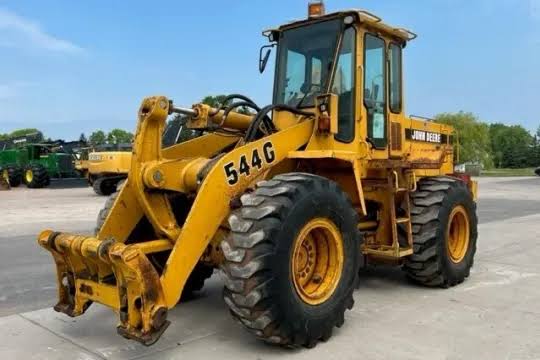

John Deere 544G Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,092 lb
Fuel Capacity57.6 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity20.1 gal
Operating Voltage12 V
Turning Radius196 in
Rear Axle Oscillation22 °
Alternator Supplied Amperage95 A
Cooling System Fluid Capacity6.4 gal
Transmission Fluid Capacity2.6 gal
Engine Oil Capacity5.1 gal
Static Tipping Load - Bucket18,453 lb
Front Diff Fluid Capacity5.1 gal
Rear Diff Fluid Capacity5.1 gal
Static Tipping Load - Forks13,665 lb
Static Tipping Load - Material Handler8,945 lb

Engine

Engine specifications
Engine Model6059T
Displacement359 in³
Power Measured @2,200 rpm
Gross Power125.0 hp
Net Power120.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque388 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.3 gal/min
Raise Time5.8 s
Lower Time3.2 s
Dump Time1.4 s
Relief Valve Setting2,750 psi
Pump TypeGear type

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab126 in
Wheelbase115 in
Width Over Tires96 in
Hinge Pin - Max Height148 in
Length w/ Bucket on Ground278 in
Dump Clearance at Max Lift108 in
Reach at Max Height and Dump42 in
Max Lift Height137 in
Fork Tine Length48 in
Length with out Forks on Ground305 in
Hook Height at Max Lift - extended265 in

Transmission

Transmission specifications
Max Speed - Forward23.8 mph
Max Speed - Reverse16.9 mph
Transmission TypePower shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.69 yd³
Bucket Capacity - struck2.30 yd³
Breakout Force20,342 lb
