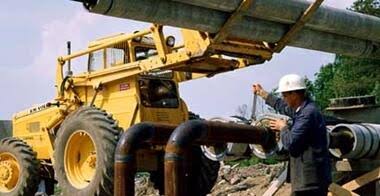

Volvo
BM LM640
- Operating Weight
- 14,550 lb
- Bucket Capacity - heaped
- 4.00 yd³
- Gross Power
- 69.0 hp
- Net Power
- 63.0 hp
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 14,550 lb |
|---|---|
| Tire Size | front 16.9-30/10 rear 12.4-24/10 |
| Turning Radius | 216 in |
Engine
| Engine Model | BM- 1113 ALH |
|---|---|
| Displacement | 230 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 69.0 hp |
| Net Power | 63.0 hp |
| Number of Cylinders | 3 |
| Aspiration | direct injection |
Hydraulic System
| Pump Flow Capacity | 30.8 gal/min |
|---|---|
| Relief Valve Setting | 1,280 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 100 in |
| Wheelbase | 91 in |
| Reach at Max Lift and Dump | 25 in |
| Length with Bucket on Ground | 212 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 18.4 mph |
|---|---|
| Max Speed - Reverse | 18.4 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.00 yd³ |
|---|---|
| Bucket Capacity - struck | 0.99 yd³ |
| Dump Clearance at Max Raise | 114 in |
