Caterpillar

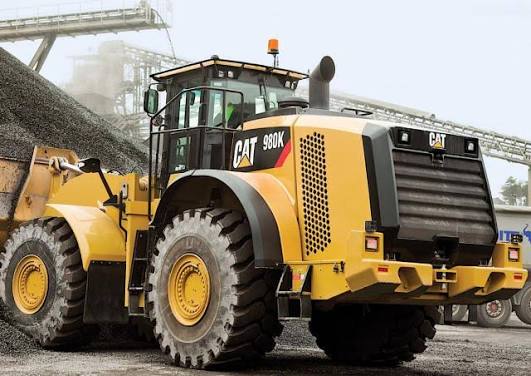

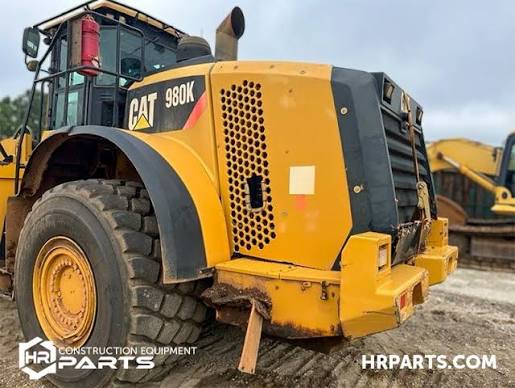

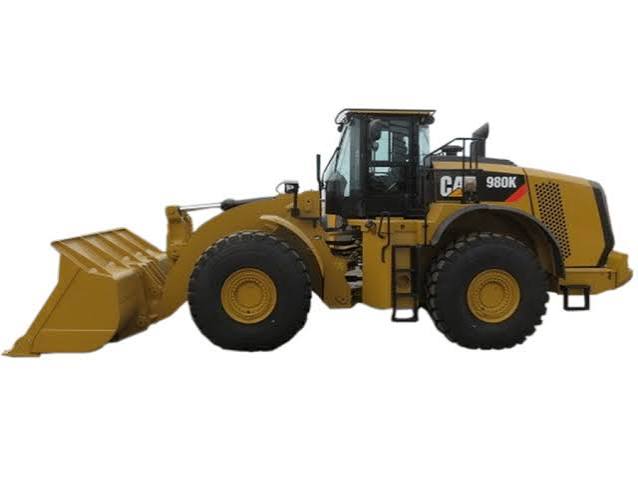

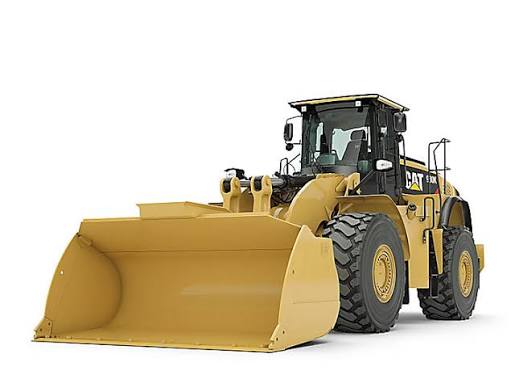

980K
- Operating Weight
- 66,489 lb
- Bucket Capacity - heaped
- 5.49 yd³
- Gross Power
- 355.0 hp
- Net Power
- 369.0 hp
1 / 5
Image 1 of 5
Specifications
77 data points
Operating Specifications
| Operating Weight | 66,489 lb |
|---|---|
| Fuel Capacity | 127.0 gal |
| Tire Size | 29.5-25 |
| Hydraulic System Fluid Capacity | 66.0 gal |
| Static Tipping Weight | 50,201 lb |
| Operating Voltage | 24 V |
| Turning Radius | 313 in |
| Engine Oil Fluid Capacity | 10.0 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 23.0 gal |
| Rear Axle/Diff Fluid Capacity | 23.0 gal |
| Cooling System Fluid Capacity | 22.0 gal |
| Transmission Fluid Capacity | 16.0 gal |
| Breakout Force | 53,548 lb |
Engine
| Engine Model | Cat C13 ACERT |
|---|---|
| Displacement | 763 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 355.0 hp |
| Net Power | 369.0 hp |
| Number of Cylinders | 6 |
| Stroke | 6 in |
| Bore | 5 in |
| Net Power - ISO 9249 | 369.0 hp |
| Maximum Gross Power - ISO 14396 | 402.0 hp |
| Maximum Net Power - 1,800 rpm - EEC 80/1269 - Metric | 373.0 hp |
| Maximum Net Power - 1,800 rpm - EEC 80/1269 | 369.0 hp |
Weights
| Operating Weight | 68,862 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 123.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.4 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | Gear |
| Hydraulic Cycle Time - Total | 11.4 s |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 3.3 s |
| Steering System - Pump Type | Piston |
| Implement System - Maximum Operating Pressure | 4,496 psi |
| Hydraulic Cycle Time - Dump, at Maximum Raise | 1.7 s |
| Hydraulic Cycle Time - Raise from Carry Position | 6.4 s |
| Implement System - Optional 3rd Function Maximum Flow | 79.3 gal/min |
| Implement System - Optional 3rd Function Maximum Pressure | 3,000 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 149 in |
| Wheelbase | 146 in |
| Width Over Tires | 127 in |
| Reach at Max Lift and Dump | 61 in |
| Length with Bucket on Ground | 373 in |
| Hinge Pin - Max Height | 178 in |
Transmission
| Max Speed - Forward | 22.6 mph |
|---|---|
| Max Speed - Reverse | 25.8 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Brakes & Steering
| Brakes | Meet OSHA SAE J1473 OCT90 and ISO 3450-1985 required standards |
|---|
Cab & Operator
| ROPS/FOPS | Meets SAE and ISO standards |
|---|
Tires & Wheels
| Tires | Choices |
|---|---|
| Note (1) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Note (2) | Other special tires are available on request. |
| Note (3) | In certain applications the loader's productive capabilities might exceed the tires' tonnes-km/h (ton-) capabilities. |
Bucket
| Bucket Capacity - heaped | 5.49 yd³ |
|---|---|
| Bucket Capacity - struck | 4.80 yd³ |
| Dump Clearance at Max Raise | 131 in |
| Breakout Force | 61,425 lb |
| Bucket Width | 139 in |
| Bucket Capacities | 5.24 – 16.00 yd³ |
Service Refill Capacities
| Cooling System | 16.6 gal |
|---|---|
| Transmission | 17.4 gal |
| Crankcase | 9.8 gal |
| Differential - Final Drives - Front | 22.2 gal |
| Differential - Final Drives - Rear | 22.2 gal |
| Hydraulic Tank | 44.9 gal |
| Fuel Tank - Standard | 118.1 gal |
Axles
| Front | Fixed |
|---|---|
| Rear | Oscillating ?13 degrees |
| Maximum Single-Wheel Rise and Fall | 22 in |
Sound
| Standards | Standards |
|---|
