CaterpillarCaterpillar

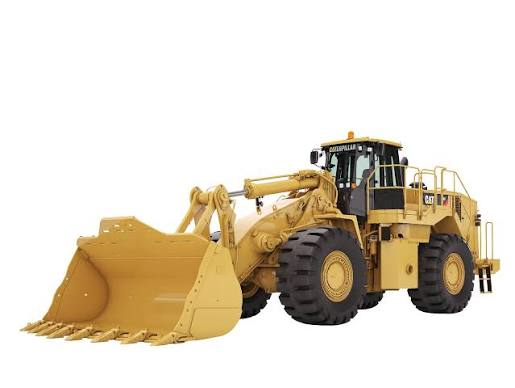

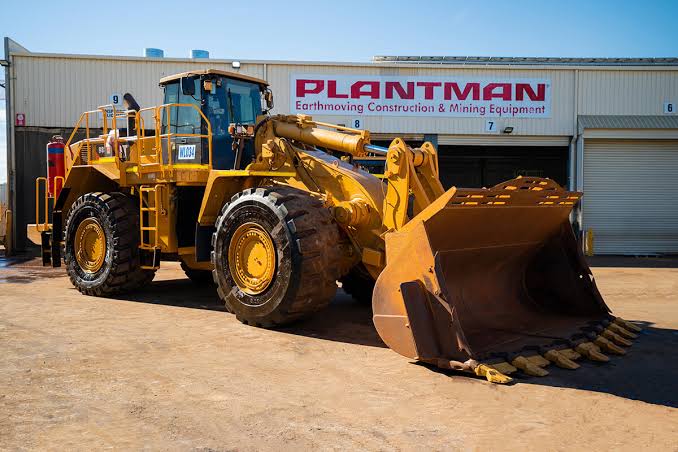

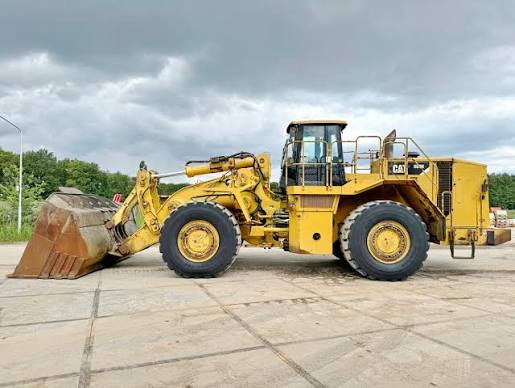

982M
Wheel Loader
19 specifications
1 / 5
Image 1 of 5
Specifications
82 data points
Operating Specifications
| Fuel Capacity | 188.0 gal |
|---|---|
| Tire Size | 35/65 |
| Hydraulic System Fluid Capacity | 70.5 gal |
| Static Tipping Weight | 76,776 lb |
| Operating Voltage | 24 V |
| Turning Radius | 336 in |
| Engine Oil Fluid Capacity | 15.9 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 49.0 gal |
| Rear Axle/Diff Fluid Capacity | 49.0 gal |
| Cooling System Fluid Capacity | 27.2 gal |
| Transmission Fluid Capacity | 18.5 gal |
| Rated Payload | 27,558 lb |
| Hinge Pin Height, Unloaded | 194 in |
Engine
| Engine Model | Cat C18 ACERT |
|---|---|
| Displacement | 1,105 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 555.0 hp |
| Number of Cylinders | 6 |
| Make | Cat |
| Bore | 6 in |
| Stroke | 7 in |
| Net Power - ISO 9249 | 501.0 hp |
| Net Power - EEC 80/1269 | 501.0 hp |
| Flywheel Power | 501.0 hp |
| Gross Power - ISO 3046-2 | 520.0 hp |
Weights
| Operating Weight | 128,328 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 130.0 gal/min |
|---|---|
| Raise Time | 9.4 s |
| Lower Time | 3.8 s |
| Dump Time | 2.4 s |
| Relief Valve Setting | 4,500 psi |
Dimensions
| Height - Top of Cab | 162 in |
|---|---|
| Wheelbase | 179 in |
| Width Over Tires | 142 in |
| Reach at Max Lift and Dump | 80 in |
| Length with Bucket on Ground | 481 in |
| Hinge Pin - Max Height | 230 in |
| Height - Top of Exhaust | 162 in |
| Wheel Base Length | 180 in |
Transmission
| Max Speed - Forward | 24.0 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Direct Drive - Forward 2 | 7.7 mph |
| Direct Drive - Forward 3 | 13.6 mph |
| Direct Drive - Reverse 2 | 8.8 mph |
| Direct Drive - Reverse 3 | 15.6 mph |
| Direct Drive - Reverse 1 | 4.9 mph |
| Converter Drive - Forward 1 | 4.2 mph |
| Converter Drive - Forward 2 | 7.3 mph |
| Converter Drive - Forward 3 | 12.9 mph |
| Converter Drive - Reverse 1 | 4.7 mph |
| Converter Drive - Reverse 2 | 8.4 mph |
| Converter Drive - Reverse 3 | 14.7 mph |
| Direct Drive - Forward 4 | 24.0 mph |
Cab & Operator
| Cab - ROPS/FOPS | Meets SAE and ISO standards |
|---|---|
| Sound Performance | Meets ANSI SAE and ISO standards |
Bucket
| Bucket Capacity - heaped | 8.40 yd³ |
|---|---|
| Bucket Capacity - struck | 6.91 yd³ |
| Breakout Force | 85,068 lb |
| Bucket Width | 150 in |
| Bucket Capacities | 10.01 yd³ |
| Maximum Bucket Capacity | 10.01 yd³ |
Service Refill Capacities
| Cooling System | 27.2 gal |
|---|---|
| Transmission | 18.5 gal |
| Crankcase | 15.9 gal |
| Fuel Tank | 188.0 gal |
| Differential - Final Drives - Front | 49.0 gal |
| Differential - Final Drives - Rear | 49.0 gal |
| Hydraulic System - Tank Only | 70.5 gal |
| Hydraulic System Factory Fill | 124.2 gal |
Steering System
| Steering | Meets SAE and ISO standards |
|---|
Axles
| Front | Fixed |
|---|---|
| Rear | Oscillating 13 degrees |
| Maximum Single-Wheel Rise and Fall | 22 in |
Loader Hydraulic System
| Relief Valve Setting | 5,075 psi |
|---|---|
| Relief Valve Setting - Low Idle | 348 psi |
Hydraulic Cycle Times
| Raise | 9.4 s |
|---|---|
| Dump | 2.4 s |
| Total Hydraulic Cycle Time | 15.6 s |
