Daewoo

MEGA 300 V

Wheel Loader

Operating Weight
83,383 lb
Bucket Capacity - heaped
4.00 yd³
Gross Power
209.2 hp
All wheel loaders

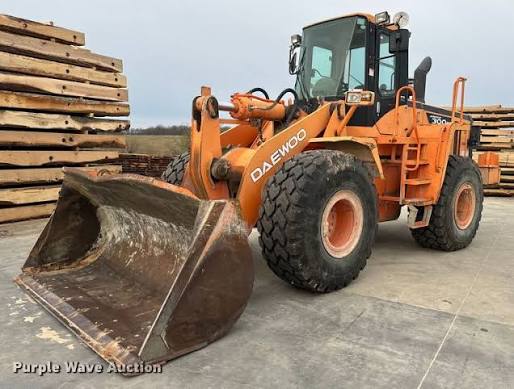

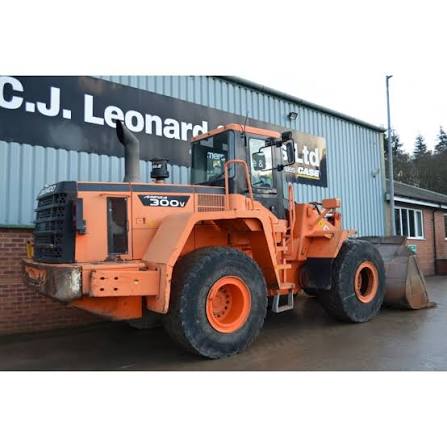

Daewoo MEGA 300 V Wheel Loader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight83,383 lb
Fuel Capacity87.2 gal
Tire Size23.5 - 25 - 16PR - L3
Hydraulic System Fluid Capacity55.5 gal
Operating Voltage24 V
Turning Radius504 in
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity10.1 gal
Rear Axle/Diff Fluid Capacity8.0 gal

Engine

Engine specifications
Engine ModelDE08TIS
Displacement493 in³
Power Measured @2,100 rpm
Gross Power209.2 hp
AspirationTurbocharged
Torque Measured @1,300 rpm
Bore4 in
Stroke6 in
Net Torque665 lb-ft
Starter8.9 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity72.7 gal/min
Relief Valve Setting2,845 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab137 in
Wheelbase126 in
Width Over Tires109 in
Length with Bucket on Ground319 in
Hinge Pin - Max Height158 in

Transmission

Transmission specifications
Max Speed - Forward21.1 mph
Max Speed - Reverse21.1 mph
Transmission TypeFull auto power-shift countershaft
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped4.00 yd³
Breakout Force40,785 lb
