Caterpillar

994F

Wheel Loader

Operating Weight
427,209 lb
Bucket Capacity - heaped
24.90 yd³
Gross Power
1,577.0 hp
Net Power
1,463.0 hp
All wheel loaders

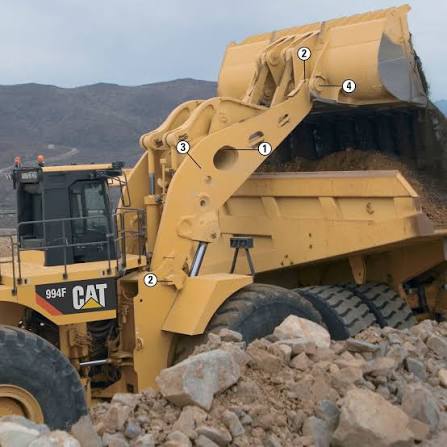

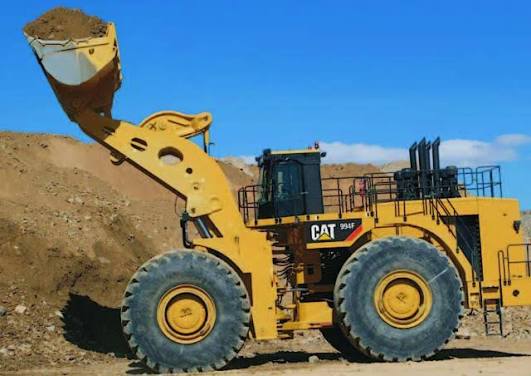

Caterpillar 994F Wheel Loader
1 / 5
Image 1 of 5
Image: horizonplant.com

Specifications

103 data points

Operating Specifications

Operating Specifications specifications
Operating Weight427,209 lb
Bucket Capacity Range14-36m3 18.5-47yd3
Fuel Capacity1,012.5 gal
Tire Size53.5/85-57
Hydraulic System Fluid Capacity236.0 gal
Static Tipping Weight283,292 lb
Engine Oil Fluid Capacity75.6 gal
Rear Axle Oscillation20 °
Front Axle/Diff Fluid Capacity164.1 gal
Rear Axle/Diff Fluid Capacity164.1 gal
Cooling System Fluid Capacity129.5 gal
Transmission Fluid Capacity92.5 gal
Rated Bucket Capacity24.99 yd³
Articulation Angle40 °
Rated Payload76,000 lb
Cat Truck Match - High Lift789C 793C
Cat Truck Match - Standard785C 789C
Rated Payload - High Lift70,000 lb
Rated Payload - Standard76,000 lb

Engine

Engine specifications
Engine ModelCat 3516B HD EUI
Displacement4,875 in³
Power Measured @1,600 rpm
Gross Power1,577.0 hp
Net Power1,463.0 hp
MakeCat
Stroke9 in
Bore7 in
Torque Rise32.0 %
Net Power - ISO 92491,463.0 hp
Net Power - SAE J13491,447.0 hp
Net Power - EEC 80/12691,463.0 hp

Weights

Weights specifications
Operating Weight427,200 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity362.0 gal/min
Raise Time11.3 s
Lower Time3.5 s
Dump Time3.1 s
Relief Valve Setting4,750 psi
Pump Typepiston

Dimensions

Dimensions specifications
Ground Clearance32 in
Height - Top of Cab265 in
Wheelbase252 in
Overall Length769 in
Width Over Tires215 in
Reach at Max Lift and Dump90 in
Length with Bucket on Ground666 in
Hinge Pin - Max Height323 in
Reach at Maximum Lift/Dump91 in
Height - Top of Exhaust276 in
Wheel Base Length252 in
Hinge Pin Height at Full Lift322 in

Transmission

Transmission specifications
Max Speed - Forward14.0 mph
Max Speed - Reverse15.5 mph
Transmission TypeCat planetary power shift
Number of Forward Gears3
Number of Reverse Gears3
Forward - 14.8 mph
Reverse - 15.3 mph
Forward - 28.3 mph
Reverse - 28.2 mph
Forward - 314.0 mph
Reverse - 315.4 mph
Direct Drive - Forward 28.5 mph
Direct Drive - Forward 314.9 mph
Direct Drive - Reverse 28.4 mph
Direct Drive - Reverse 316.0 mph
Direct Drive - Forward 1Lock - up disabled
Direct Drive - Reverse 15.3 mph

Brakes & Steering

Brakes & Steering specifications
BrakesSAE J1473 OCT 90 ISO 3450:1992

Cab & Operator

Cab & Operator specifications
Cab - ROPS/FOPSSAE J1394 SAE J11040 APR88 ISO 3471-1:1986 ISO 3471:1994
Sound PerformanceISO 6394:1998

Bucket

Bucket specifications
Bucket Capacity - heaped24.90 yd³
Bucket Capacity - struck19.70 yd³
Dump Clearance at Max Raise220 in
Breakout Force222,336 lb
Bucket Width223 in
Bucket Capacities46.99 yd³
Maximum Bucket Capacity46.99 yd³

Service Refill Capacities

Service Refill Capacities specifications
Cooling System129.0 gal
Transmission92.0 gal
Crankcase75.5 gal
Fuel Tank1,012.9 gal
Differential - Final Drives - Front164.0 gal
Differential - Final Drives - Rear164.0 gal

Axles

Axles specifications
FrontFixed
RearTrunnion
Maximum Single-Wheel Rise and Fall27 in
Oscillation Angle10 °

Hydraulic Cycle Times

Hydraulic Cycle Times specifications
Raise11.3 s
Dump3.1 s
Rack Back5.5 s

Hydraulic System - Lift/Tilt

Hydraulic System - Lift/Tilt specifications
Lift Cylinder - Bore13 in
Lift Cylinder - Stroke65 in
Lift/Tilt System - CircuitOpen
Relief Valve Setting - Lift/Tilt4,750 psi
Tilt Cylinder - Bore11 in
Tilt Cylinder - Stroke45 in
Cylinders - Lift/TiltDouble-acting
Number of Lift Cylinders2
Number of Tilt Cylinders2
Number of Lift/Tilt Pumps4

Hydraulic System - Steering

Hydraulic System - Steering specifications
Steering System - CircuitClosed
Steering System - PumpPiston variable displacement
Relief Valve Setting - Steering4,500 psi
