Komatsu

WA1200-3

Wheel Loader

Operating Weight
452,390 lb
Bucket Capacity - heaped
26.20 yd³
Gross Power
1,715.0 hp
Net Power
1,560.0 hp
All wheel loaders

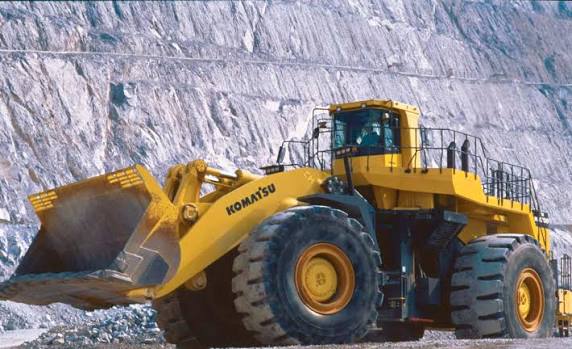

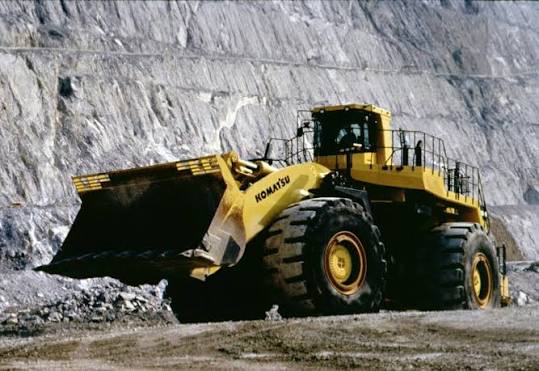

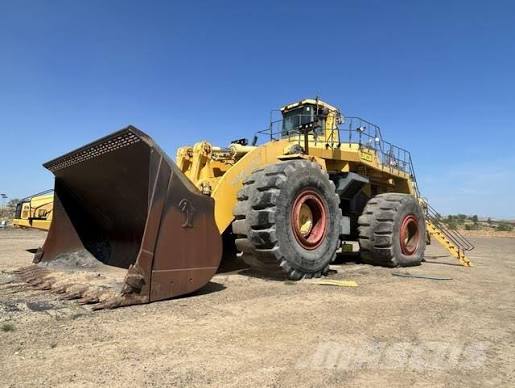

Komatsu WA1200-3 Wheel Loader
1 / 5
Image 1 of 5
Image: komatsu.firstgearinc.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight452,390 lb
Fuel Capacity1,347.2 gal
Tire Size55.5/80-57
Hydraulic System Fluid Capacity317.1 gal
Static Tipping Weight264,100 lb
Operating Voltage24 V
Turning Radius565 in
Engine Oil Fluid Capacity68.7 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage140 A
Front Axle/Diff Fluid Capacity177.0 gal
Rear Axle/Diff Fluid Capacity177.0 gal
Cooling System Fluid Capacity132.1 gal
Transmission Fluid Capacity92.5 gal
Rated Bucket Capacity23.50 – 26.20 yd³

Engine

Engine specifications
Engine ModelQSK60
Displacement3,674 in³
Power Measured @1,900 rpm
Gross Power1,715.0 hp
Net Power1,560.0 hp
Number of Cylinders16
AspirationTurbocharged and Aftercooled

Weights

Weights specifications
Operating Weight452,390 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity276.0 gal/min
Raise Time13.5 s
Lower Time5.0 s
Dump Time3.0 s
Relief Valve Setting4,550 psi

Dimensions

Dimensions specifications
Height - Top of Cab270 in
Wheelbase280 in
Width Over Tires226 in
Reach at Max Lift and Dump118 in
Length with Bucket on Ground718 in
Hinge Pin - Max Height348 in

Transmission

Transmission specifications
Max Speed - Forward12.4 mph
Max Speed - Reverse14.1 mph
Transmission TypePower shift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped26.20 yd³
Bucket Capacity - struck22.50 yd³
Dump Clearance at Max Raise248 in
Breakout Force286,600 lb
Bucket Width252 in

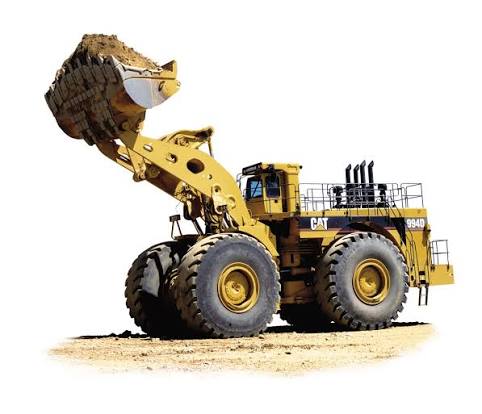

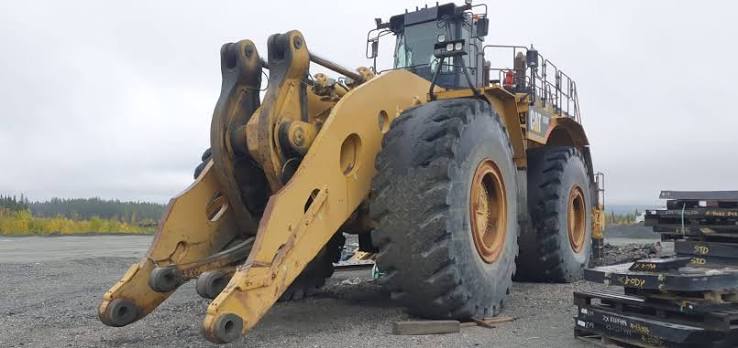

Comparable machines
