Caterpillar
AP1055D
- Operating Weight w/ Screed
- 45,130 lb
- Paving Width - max
- 96 in
- Gross Power
- 224.0 hp
- Length w/ Screed
- 258 in
1 / 5

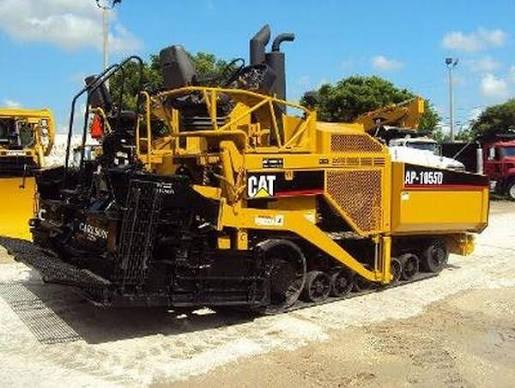

Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight w/ Screed | 45,130 lb |
|---|---|
| Operating Weight w/o Screed | 37,580 lb |
| Fuel Capacity | 122.0 gal |
| Hydraulic System Fluid Capacity | 39.4 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 9.5 gal |
| Alternator Supplied Amperage | 100 A |
Engine
| Engine Model | C7 |
|---|---|
| Displacement | 441 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 224.0 hp |
| Net Power | 221.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Make | Caterpillar |
Dimensions
| Transport Width | 132 in |
|---|---|
| Transport Height | 111 in |
| Track Width | 18 in |
| Length w/ Screed | 258 in |
| Width w/ Hopper Open | 131 in |
| Length w/o Screed | 189 in |
Hopper/Paver
| Paving Width - max | 96 – 291 in |
|---|---|
| Paving Speed - max | 2.5 mph |
| Hopper Capacity | 8 lb |
| Travel Speed - max | 9.0 mph |
| Auger Diameter | 16 in |
