Caterpillar

AP1055F

Asphalt Paver

All asphalt pavers

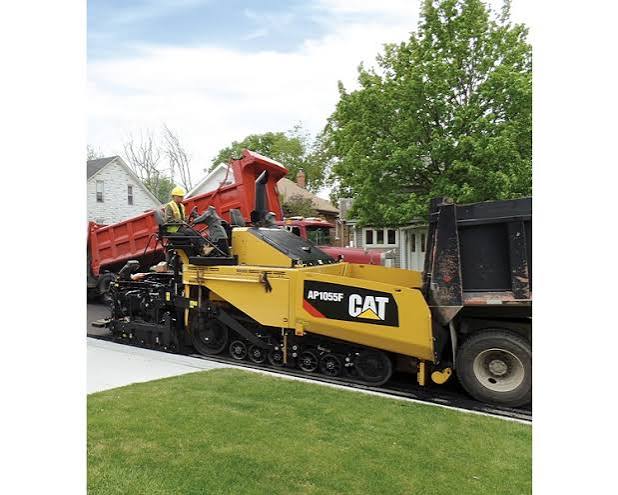

Caterpillar AP1055F Asphalt Paver
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Maximum Paving Speed2.4 mph
Maximum Throughput Capacity1602 ton(US)/h
Maximum Travel Speed9.0 mph
Inside Turn Radius18 in
Maximum Paving Speed - With Tamper Bar Screed0.9 mph

Engine

Engine specifications
Engine Model (1)Cat C7.1
Engine Power (1)225.0 hp

Weights

Weights specifications
Operating weight with SE60 FM45,352 lb
Operating weight with SE60 V45,087 lb
Operating weight with SE60 V XW46,573 lb
Shipping Weight - Paver Only36,800 lb

Dimensions

Dimensions specifications
Transport Width118 in
Transport Height117 in
Overall Height147 in
Transport Length263 in
Operating Length268 in
Operating Width130 in
Paving Range with SE60 V118 – 301 in
Paving Range with SE60 FM118 – 307 in
Paving Range with SE60 V XW118 – 394 in
Paving Range with SE60 VT XW118 – 394 in

Service Refill Capacities

Service Refill Capacities specifications
Hydraulic Oil Tank58.0 gal
Fuel Tank Capacity92.0 gal
DEF Tank5.0 gal
Cooling System12.0 gal
Washdown Tank7.9 gal
